Operation
EL6900
40
Version: 2.2.0

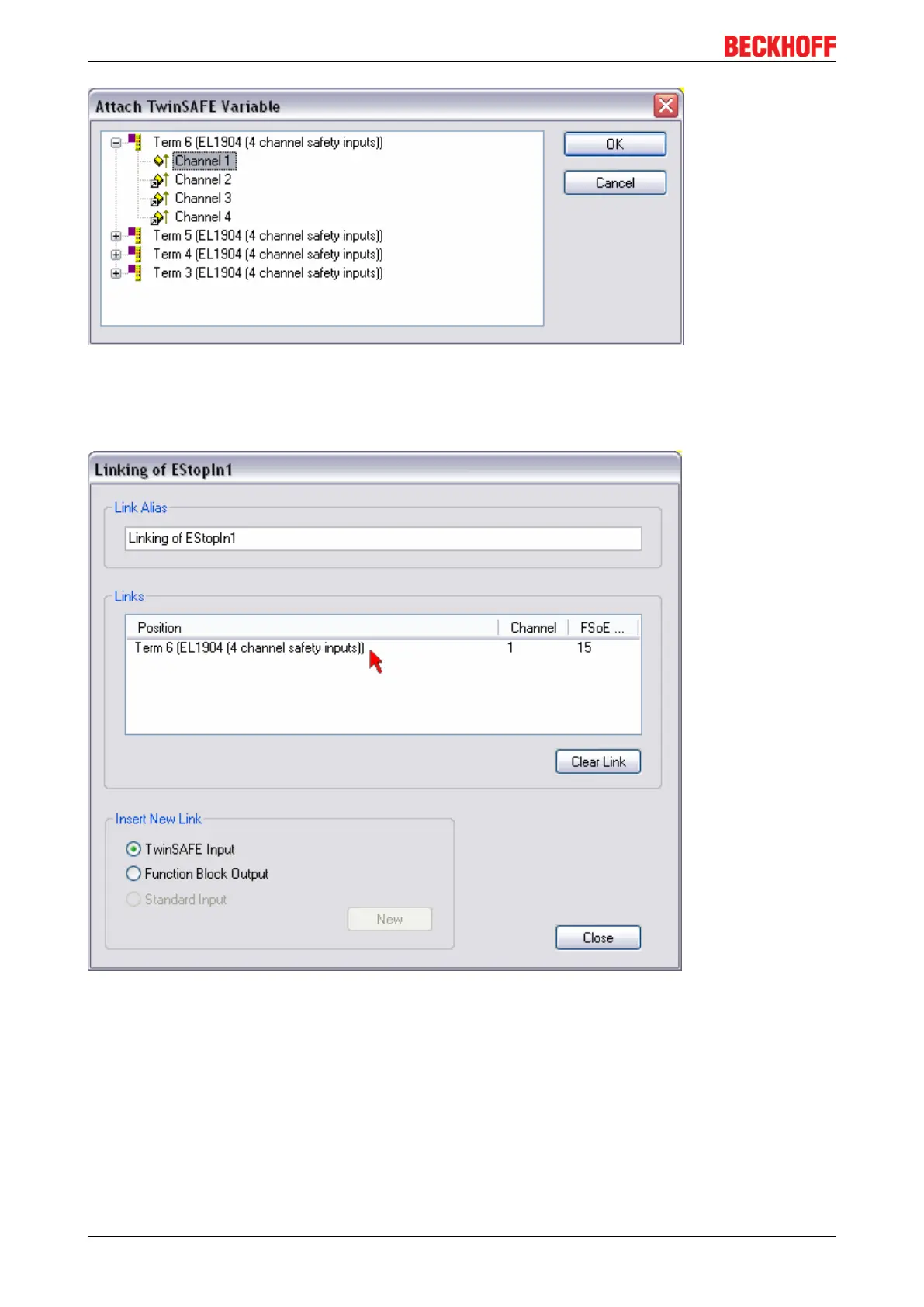

Fig.27: Available channels
All available channels are displayed as selected.
The desired channel is selected and marked with the mouse. The selection is confirmed via the OK button.
Fig.28: Selection of the desired channel
The name of the variables should now be entered in the
Link Alias
field.
39
41
