4.4.9.1 Activating and configuring the block inputs

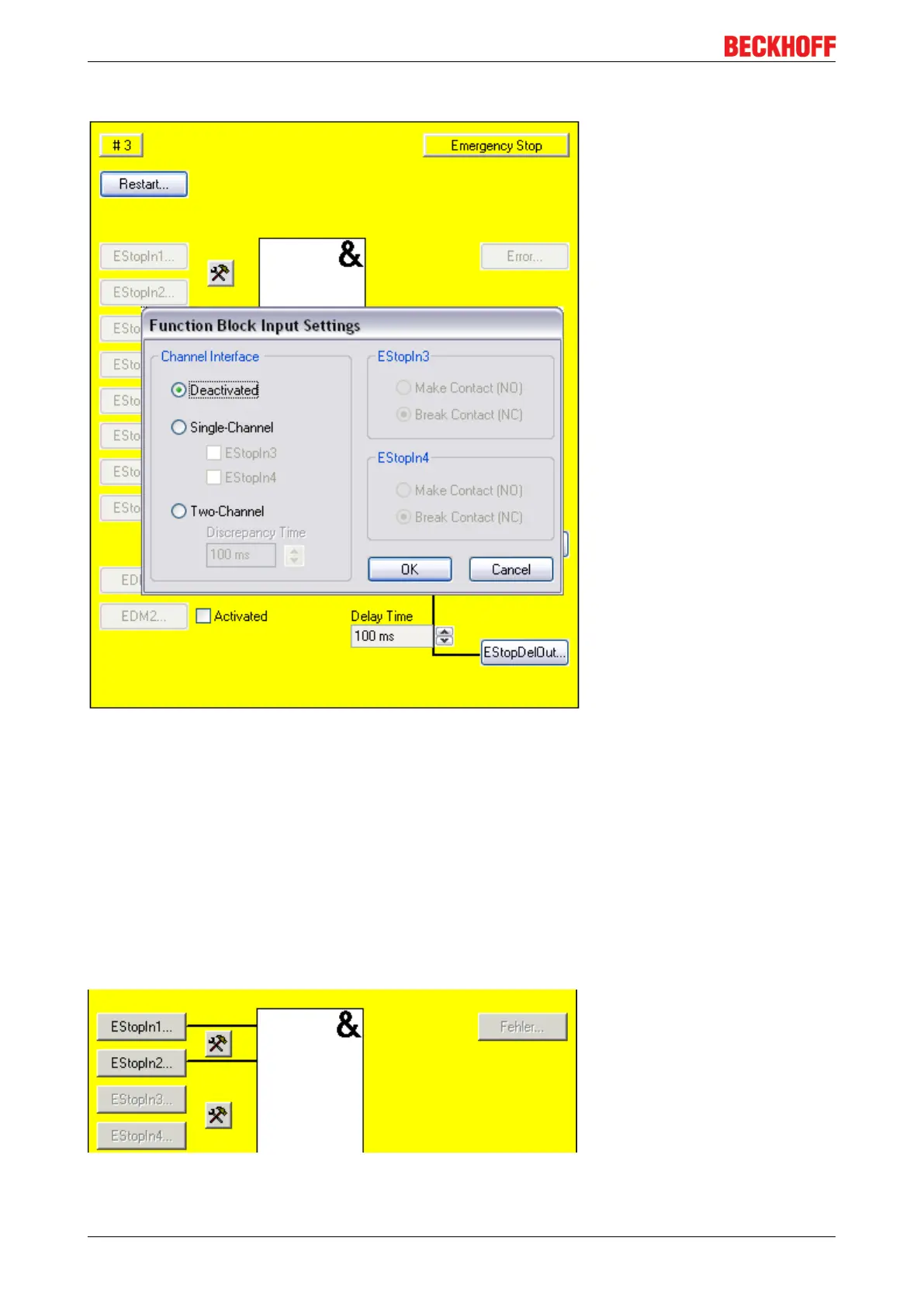

Fig.23: Function Block Input Settings
The following parameters can be set:
Deactivated: The input is not used
Single-channel: The inputs are linked independent of each other
Two-channel: The inputs are monitored for equality or inequality, depending on the contact type setting. A
Discrepancy Time can be set for monitoring the two inputs for simultaneous switching.
Make Contact: Contact type setting
Break Contact: Contact type setting
The inputs are now activated.
Fig.24: Activated inputs
The inputs can now be linked.
