Beckhoff TwinSAFE logic FB User Manual

Function blocks
166 Function blocks for TwinSAFE logic components

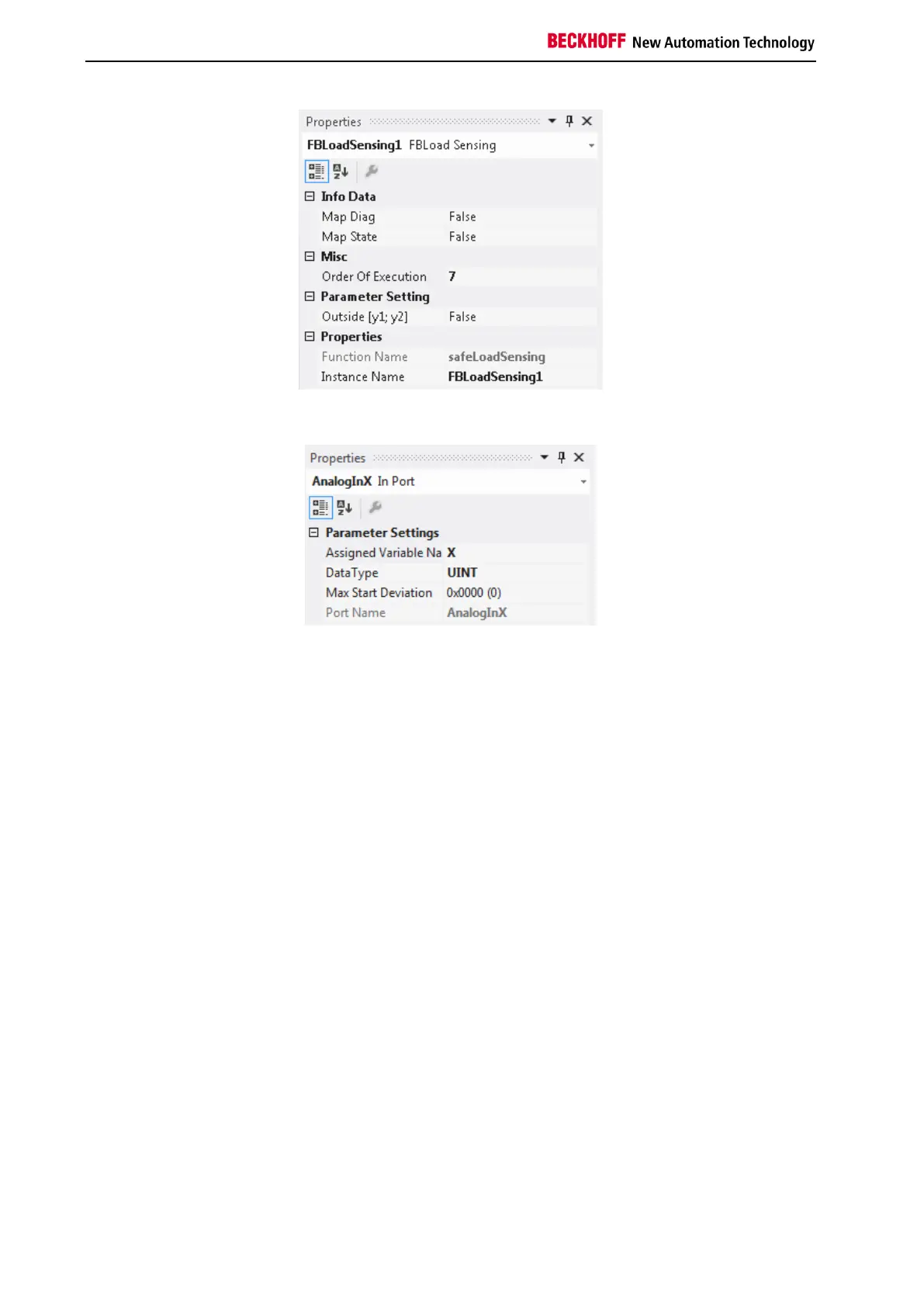

Figure 3-108: FB LOADSENSING properties
Figure 3-109: FB LOADSENSING port properties
A mouse click next to the FB port, here Inactive, AnalogInX, AnalogInY, Valid and Warning, can be used
to create variables that can be linked to input or output signals. Settings such as changing the data type
or activation of the input can be made via the properties of the FB port.
The MapState and MapDiag entries define which diagnostic functions of the FB are mapped to the cyclic
process image.
