Function blocks
162 Function blocks for TwinSAFE logic components

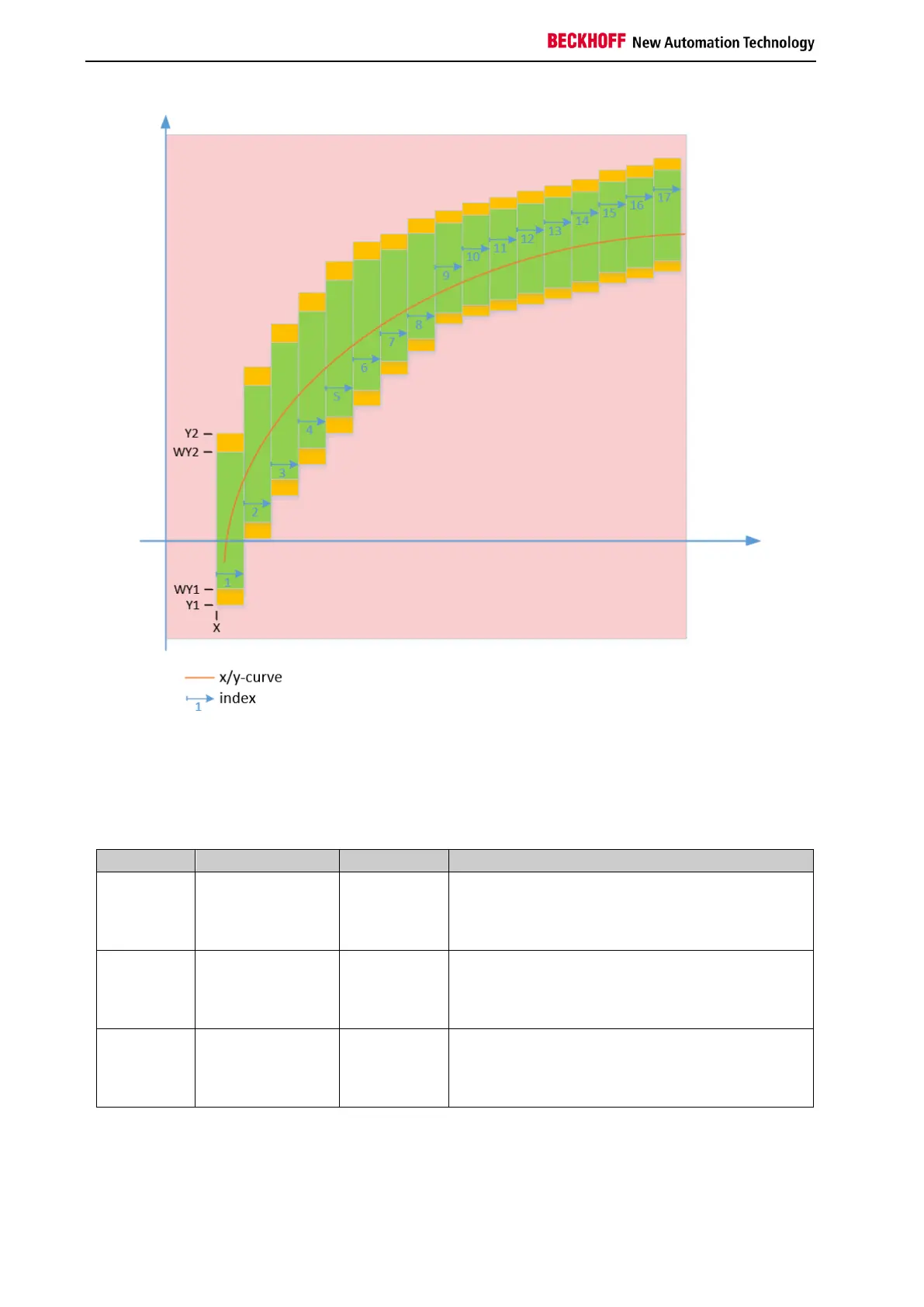

Figure 3-105 - Diagram showing verification of the characteristic curve
3.25.2 Signal description
Table 3-155: FB LoadSensing inputs
Name
Permitted type
Data type
Description
Inactive
TwinSAFE-In
FB-Out
Standard-In
TwinSAFE SC
BOOL
Input for activating the FB
AnalogInX
TwinSAFE-In
FB-Out
Standard-In
TwinSAFE SC
INT16
INT32
UINT16
UINT32
Analog x-value
AnalogInY
TwinSAFE-In
FB-Out
Standard-In
TwinSAFE SC
INT16
INT32
UINT16
UINT32
Analog y-value
