Function blocks
96 Function blocks for TwinSAFE logic components
3.9.4 Display in TwinCAT 3
Display of the function block and its properties in TwinCAT 3.

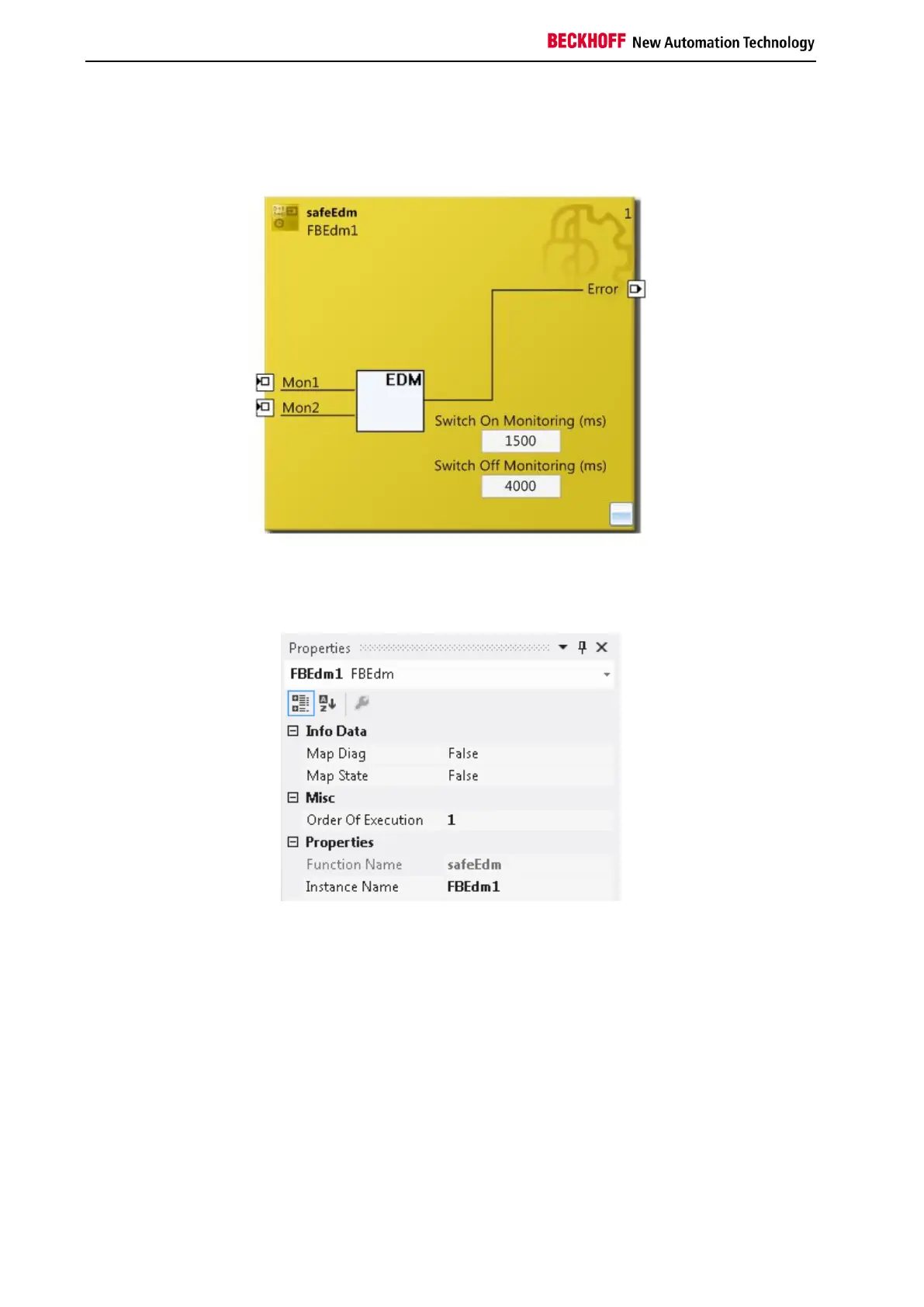

Figure 3-44: FB EDM in TwinCAT 3
Figure 3-45: FB EDM properties
The 'Switch-On Monitoring' and 'Switch-Off Monitoring' text boxes can be used to set the switch on- and
switch-off delay time. Monitoring is disabled if the value is set to 0 ms.
