Function blocks for TwinSAFE logic components 21
2.2.3 Info data connection
Info data for TwinSAFE / FSoE connections can be enabled on the Connection tab of the alias device.

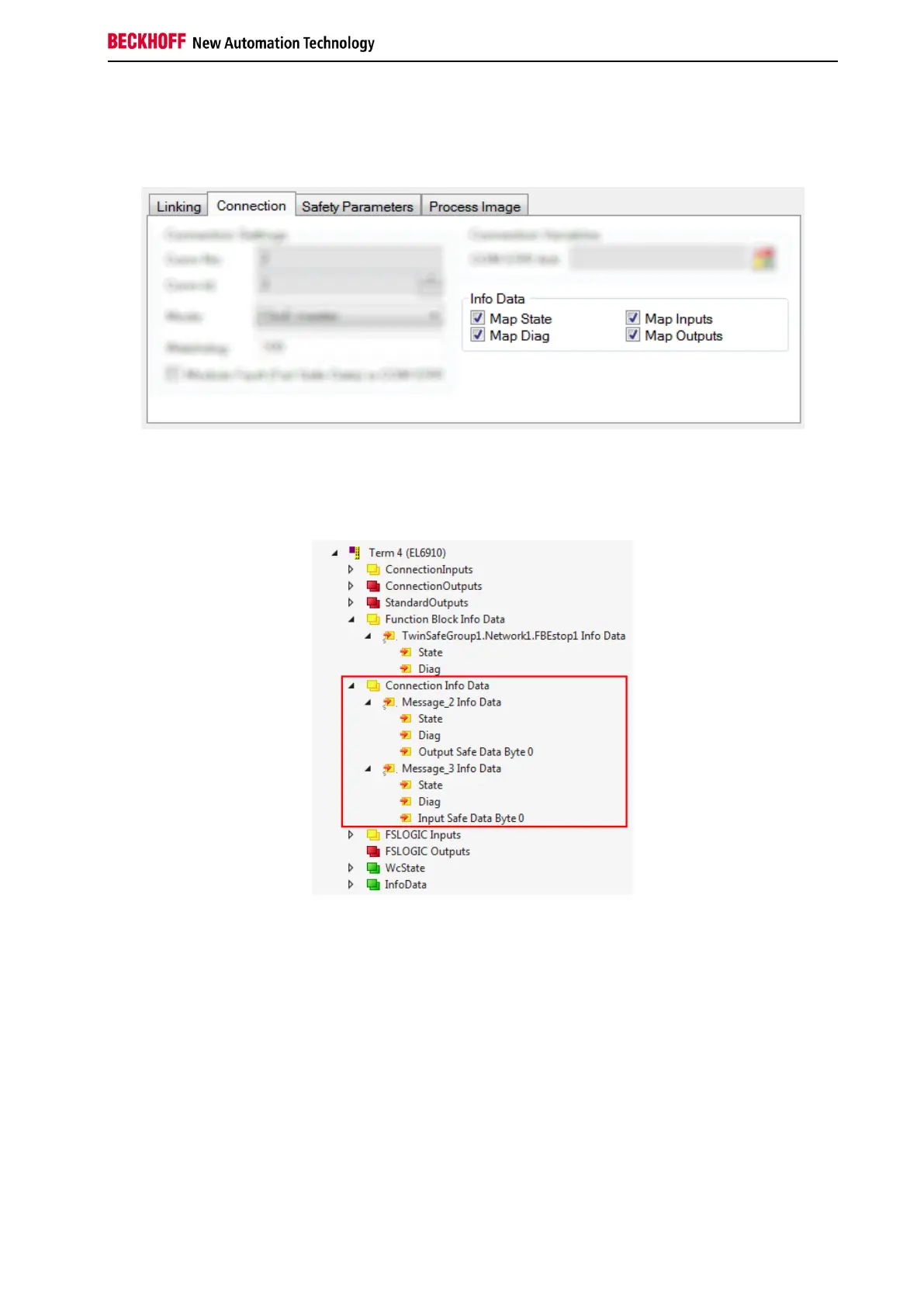

Figure 2-9: Info data connection
The info data is shown in the I/O tree structure below the TwinSAFE logic in the process image. From
here, these signals can be linked with PLC variables.
Figure 2-10: Connection info data in the I/O tree structure
The state and diagnostic information is as described above for TwinCAT 2.
