Function blocks
Function blocks for TwinSAFE logic components 179
3.26.4.5 Scope recording of the sequence

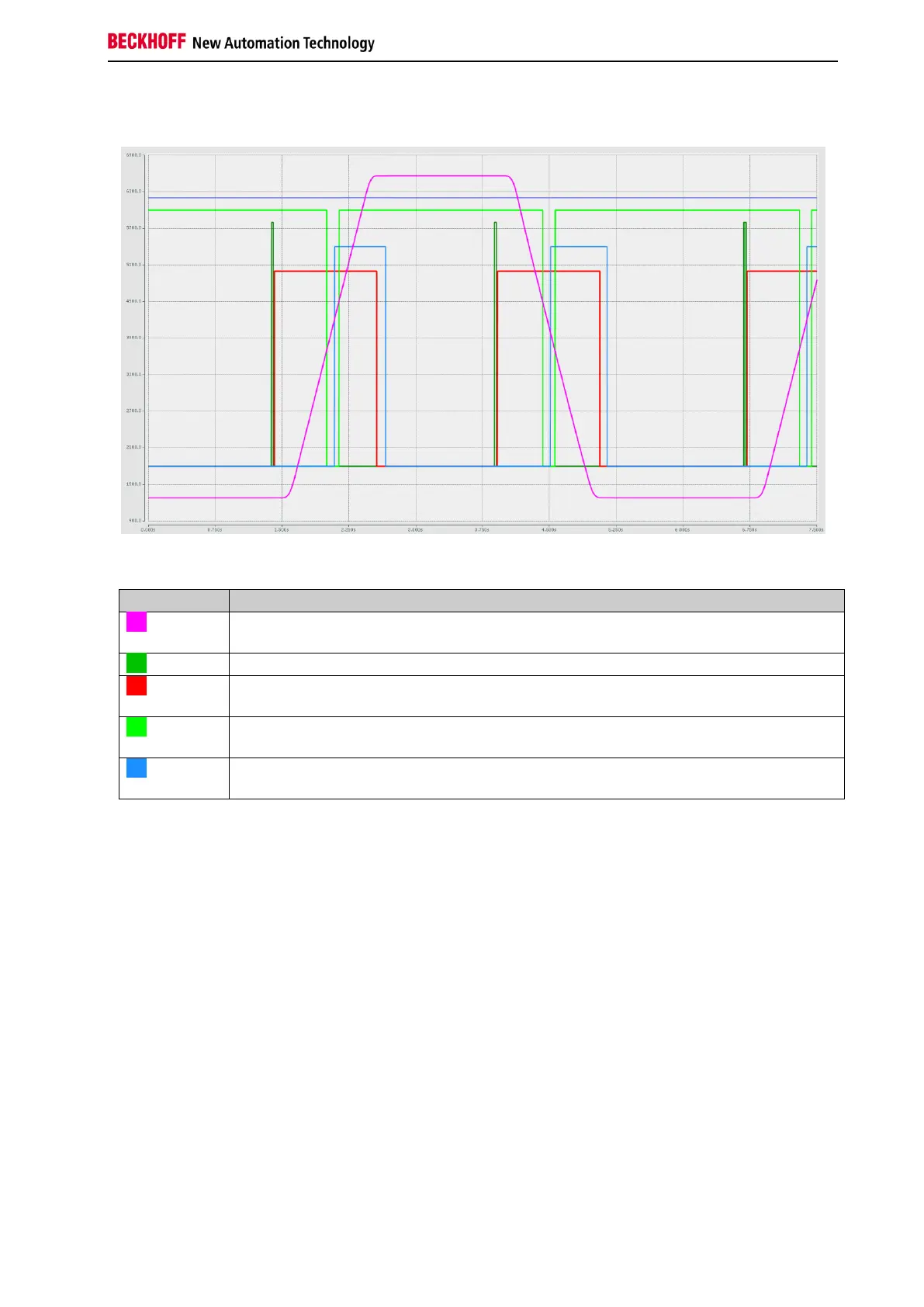

Figure 3-119: ScopeView display of the signal sequence
Color
Signal description
Current press position (here single-turn resolution 0 to 8192 increments). Oscillation
between approx. 1300 and 6500 increments.
FB input CamReset (rising and falling edge before a motion may start)
FB input PressStarted (is set to 1 when the press motion is started and set to 0 when
the press is stopped.)
FB output TDC. Press is in top dead center (here set between 400 and 3696
increments for the right side and between 4496 and 7796 increments for the left side)
FB output Upwards. Press is in upward movement. The signal is set when BDC is
exited and reset when press standstill is detected.
