Function blocks
Function blocks for TwinSAFE logic components 87
3.8.3.2 Configuration example with two two-channel muting sensors
Figure 3-36: Configuration example with two two-channel muting sensors

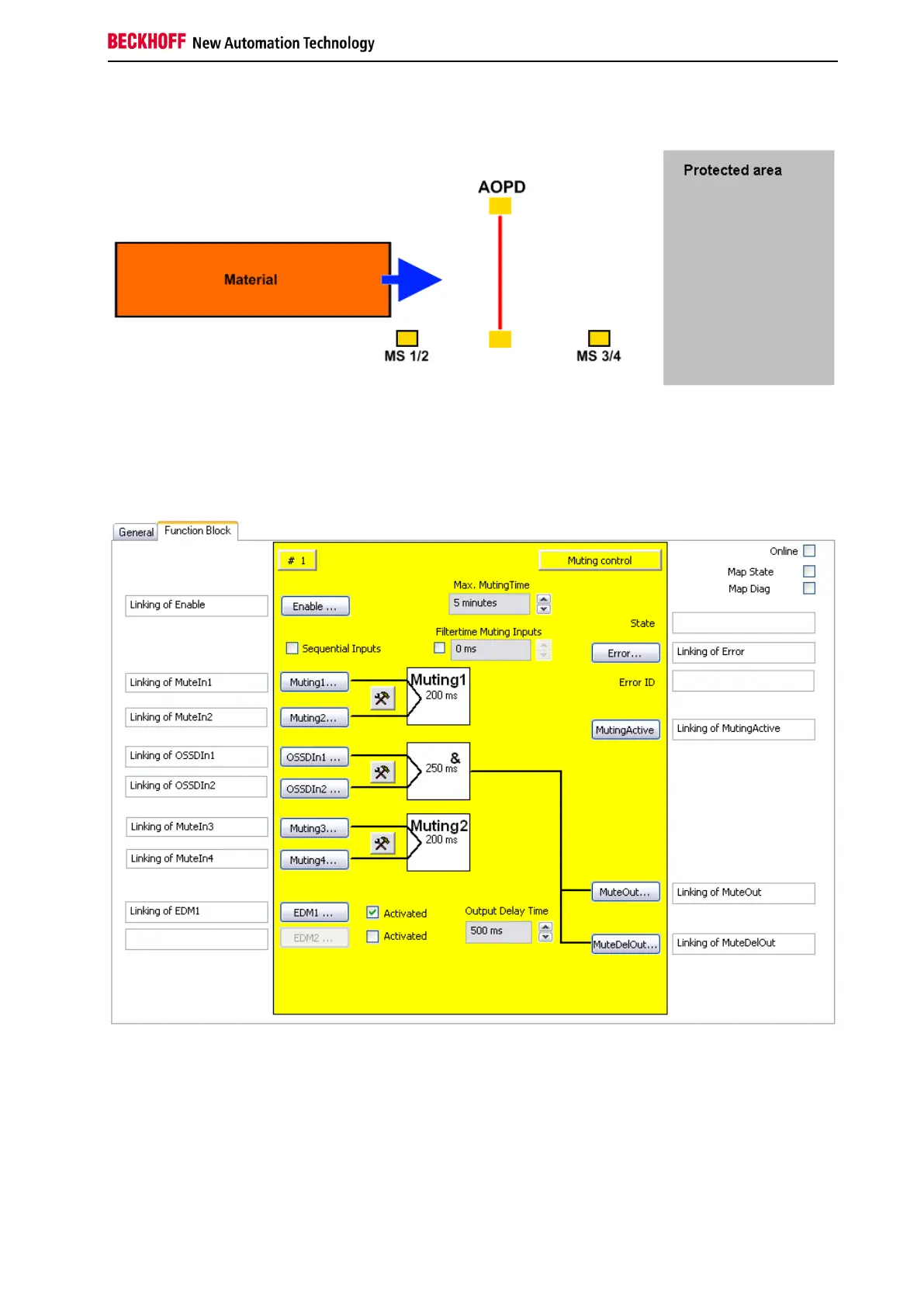

The following screenshot shows the parameterization of FB MUTING for this case. The 'Sequential
Inputs' checkbox is not checked. The 4 muting inputs are configured and wired as two-channel inputs with
discrepancy time monitoring.
Figure 3-37: Muting example
