Contact
box for
connection
at intermediate
housing
Oil flex line 110
3G x 1 with PE
Plug for
solenoid valve
24 V/DC
K1291_1

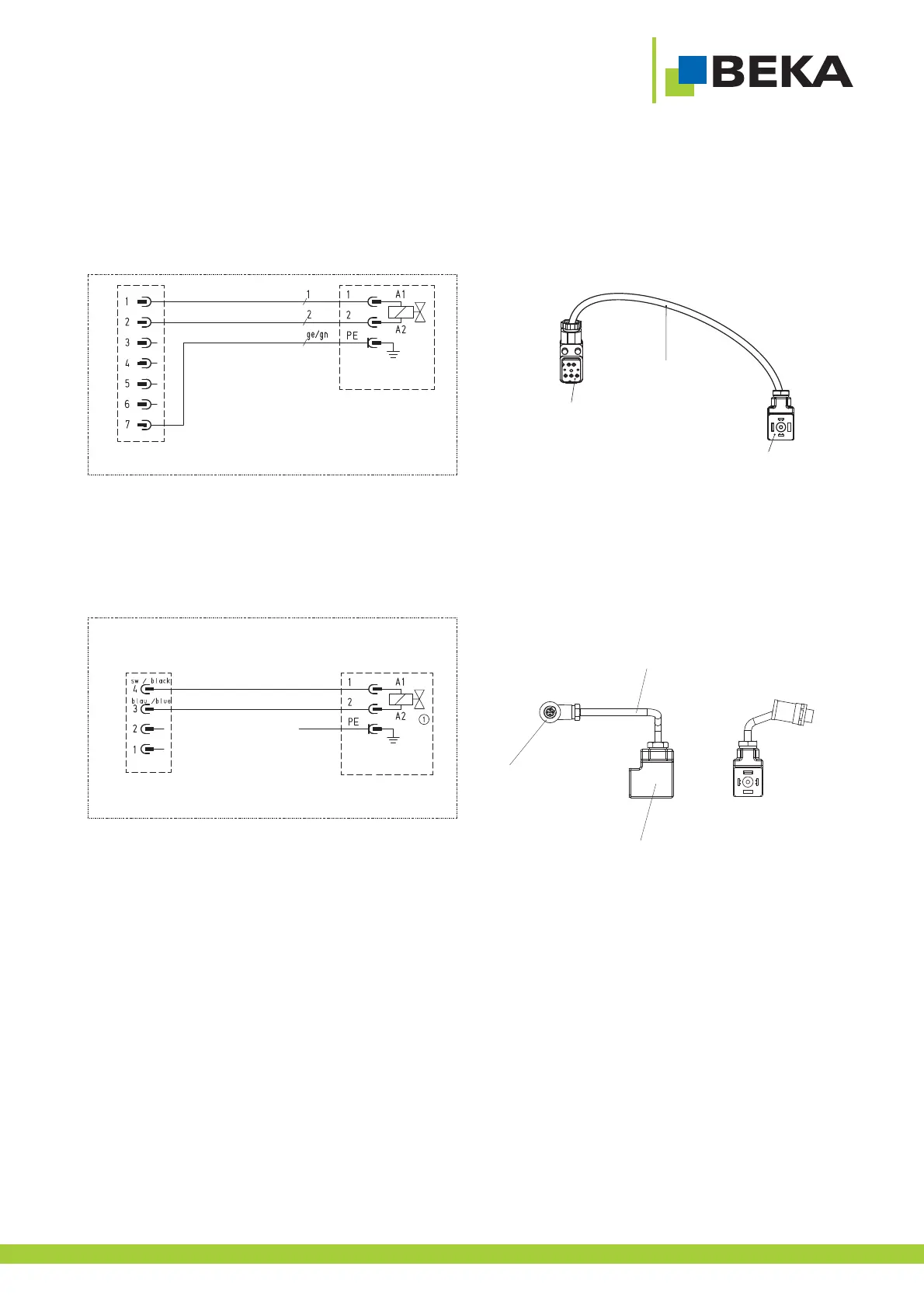

The cable with two sided plug for the connection of the solenoid valve is already installed at the pump
housing.
Connection solenoid valve via the intermediate housing:
Fig. 13:
Connection of solenoid valve via flange socket M12 at housing:
Fig. 14:
Round plug
M12
angled
Oil flex line 110
2 x 1 without PE
Plug for
solenoid valve
K1370
24 V/DC
Flange socket M12
