© BEKA 2019 Alle Rechte vorbehalten ! -12-
BAL2576_BEKA_HAMAX_System2_0919DE_EN_FR

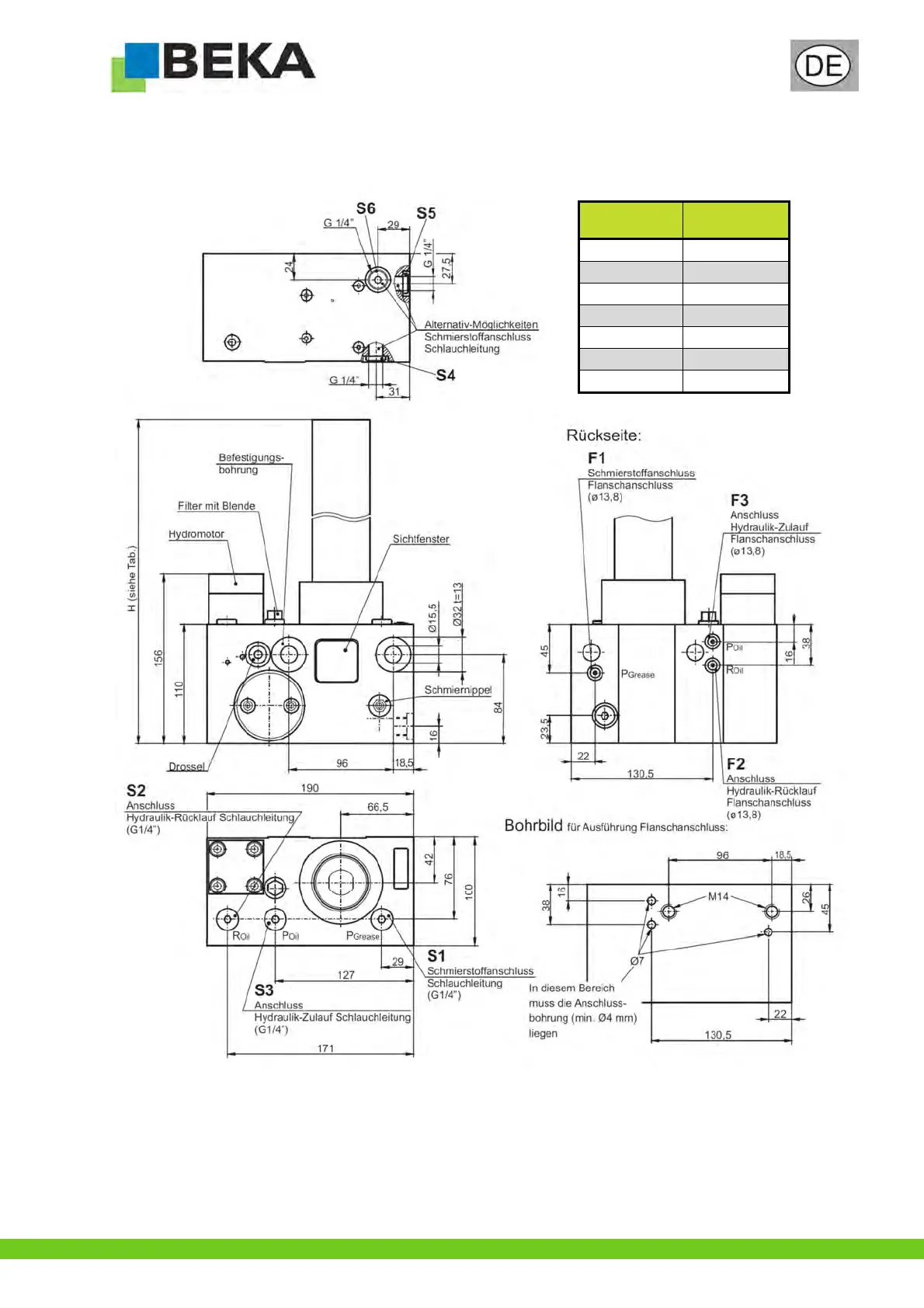

8.1.3 Anbaumaße Ausführung M14
Abb. 1:
Typ Maß H in mm
S 300
L 265
F 310
J 285
FU 325
R 300
Ra 290
