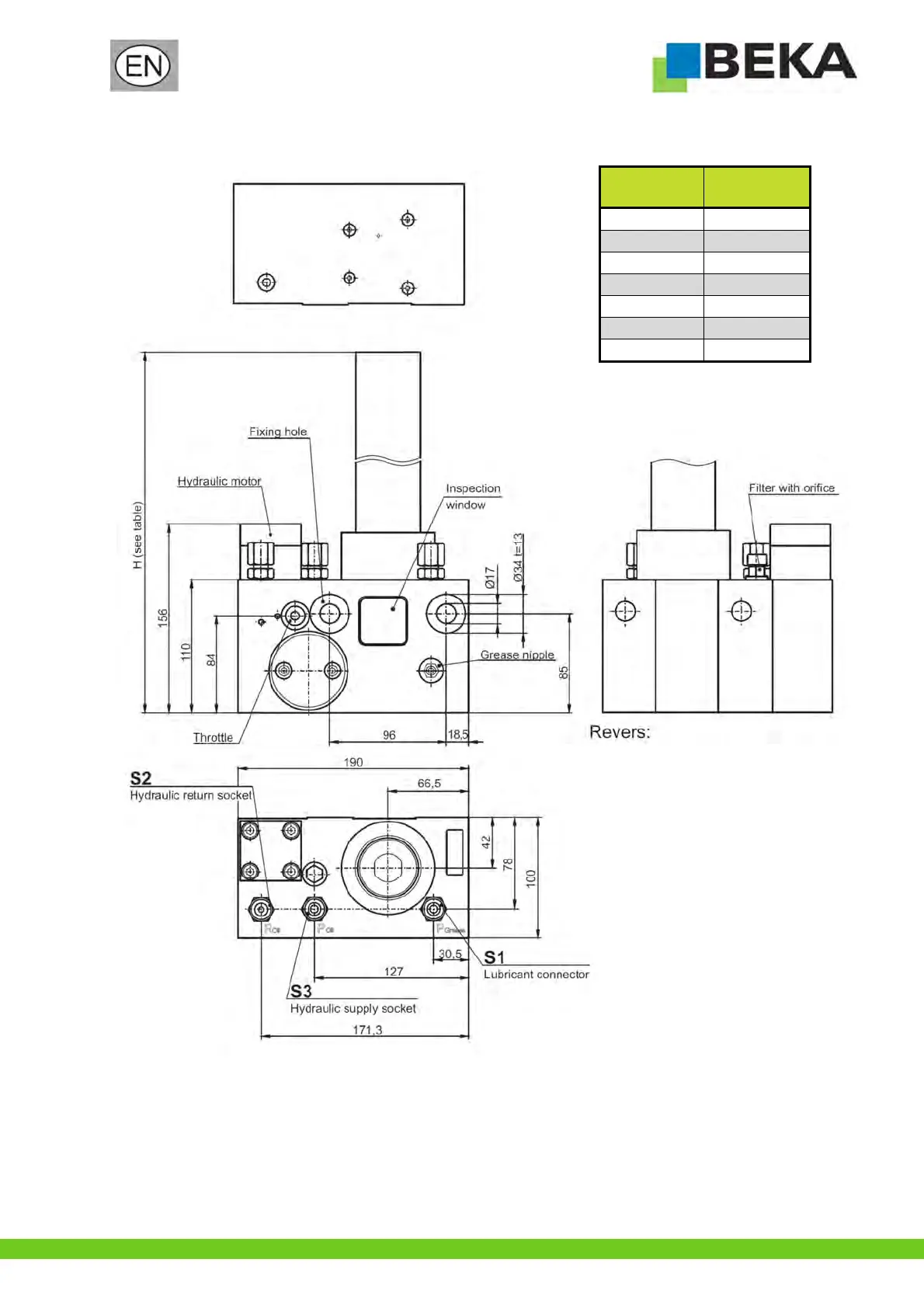

8.1.5 Attachment dimensions of version M16
Fig. 2:
Type Dimension H
in mm
S 300
L 265
F 310
J 285
FU 325
R 300
Ra 290
