BEL Engineering Mark L - Rear and Bottom Part of the Balance, M; MW; L; LW Models

8
5.2

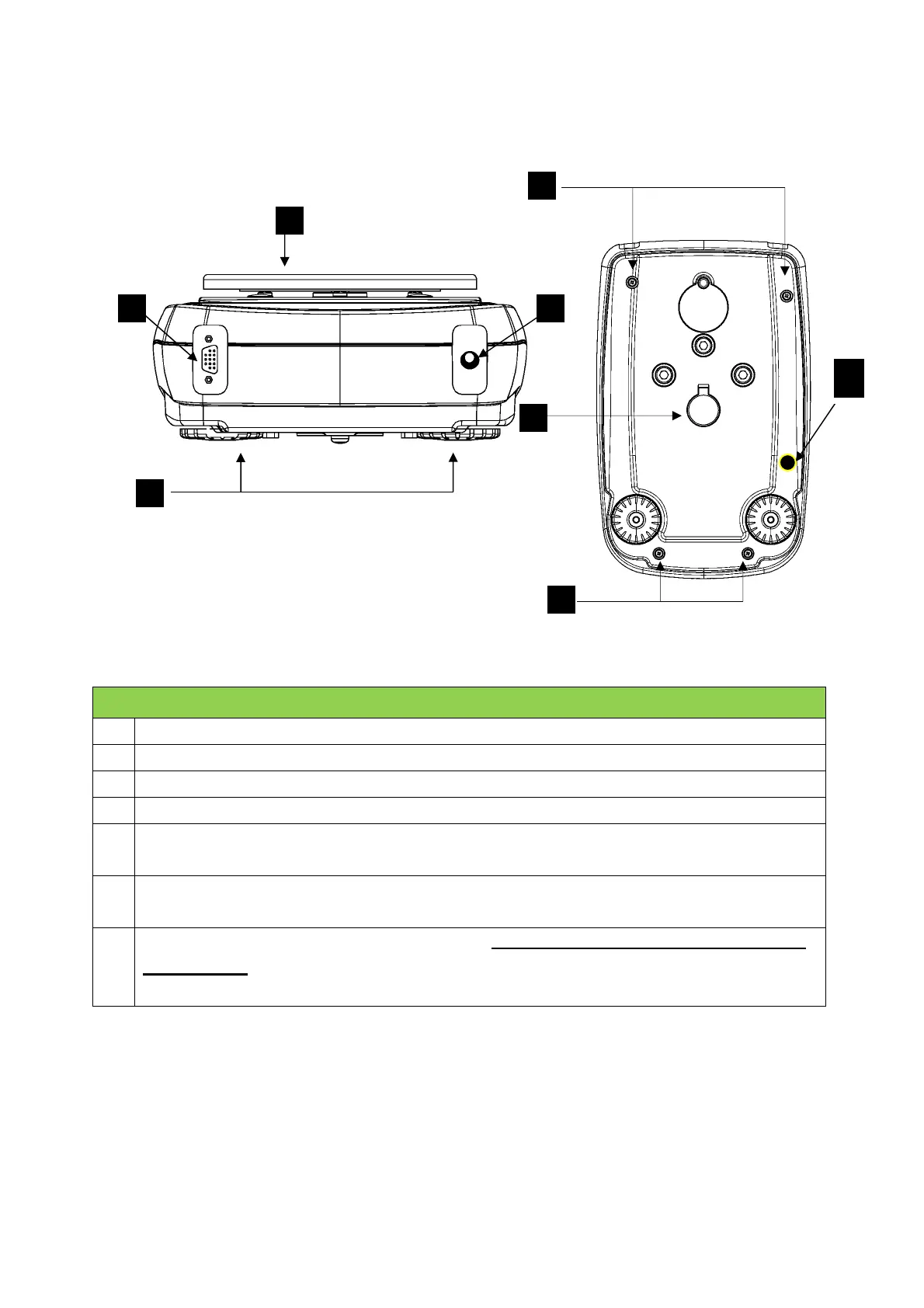

Rear and bottom part of the balance, M / MW / L / LW models
Fig.2
Rear and bottom part of the balance
Name and function (Fig.2)
1
Weighing pan
2
9 poles (pin) female connector for RS232 interface for printer/PC/external keyboard
3
Levelling feet
4
connector for power supply
5
Screws for balance closing. In models with 4 feet it is necessary first to remove the
two rear feet (one fixed and one moving) to access to the closing screws
6
Hook for under-balance weighing. Hook not available in internal calibration models
and for verified balances. Note: please remove the cap to access the hook
7
Protection screw for autocalibration motor (only for models with internal calibration).
ATTENTION: remove this screw by hand as soon as the balance is removed from
its package
2
3
3
1
4
5
5
6
5
7
