Chapter 2 Operator Interface/Standard User Screens
User
Faults
• The ovals are ON/OFF indicators
• A filled oval indicates that Fault is active
• Reset: Resets and Homes machine

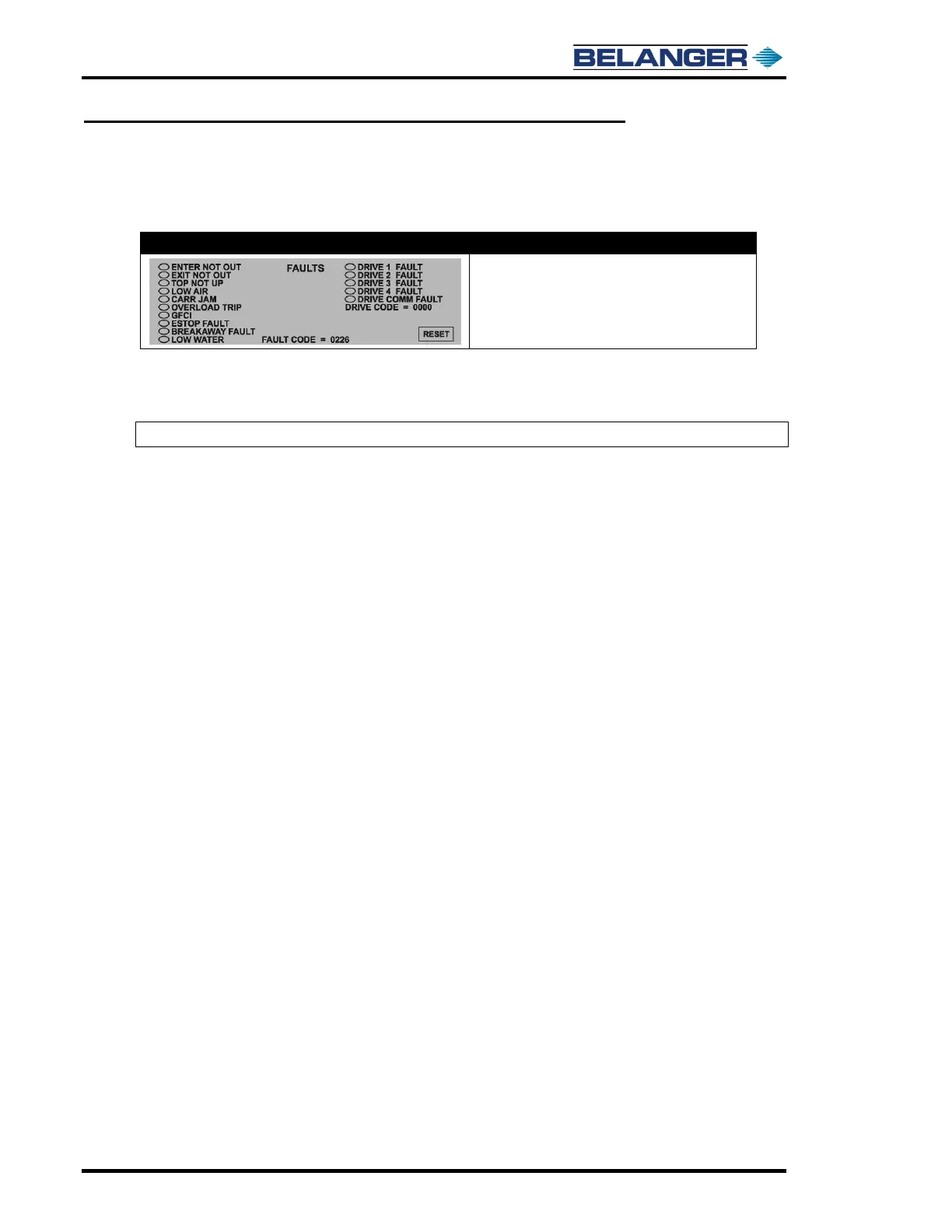

This screen displays a current Fault status on the system. The oval next to a particular Fault will be filled when that
Fault is active. It also displays a numerical Fault status of the system. This is the 4-digit “Error Code” that will be sent
to a pager when Fault occurs.
Note: Pager status 255 is for “System Ok”.
Faults / Alarms
See the chapter titled “Faults and Alarms” for Fault descriptions.
