E-1032 PROGRAMMING & OPERATION
3-10 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL226
Chapter 3 Operator Interface/Programming
Setup

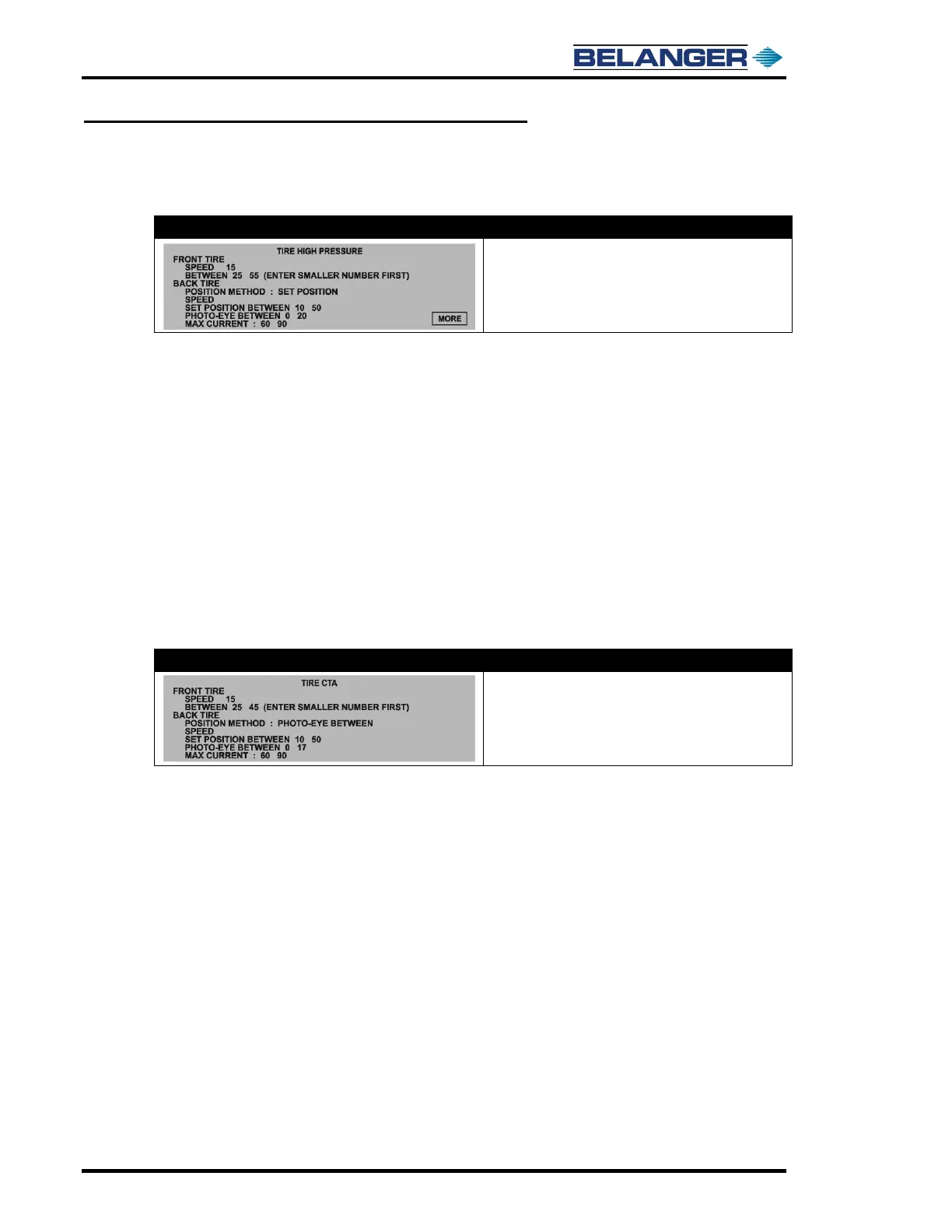

Setup / More / Tire/R Operate
E-1032
Screen Key
• TIRE HIGH PRESSURE Turns on its Output for entire
length of vehicle, then slows down in FRONT TIRE
and BACK TIRE position ranges
• TIRE OB (On-Board) CTA Slows down in FRONT
TIRE and BACK TIRE position ranges
Front Tire
SPEED: This is the speed (show in percent of maximum) that the Carriage will travel when in “FRONT TIRE”
mode.
BETWEEN: This sets the positions from the Carriage Home Position that is considered “FRONT TIRE”.
Back Tire
POSITION METHOD: Here you will select method between the following: SET POSITIONING, PHOTO-EYE
and MAX CURRENT.
• SET POSITION BETWEEN: Here you will select positions from Vehicle Length Position (Back) that is
considered BACK TIRE
• PHOTO-EYE BETWEEN: Set position forward of the Photo-Eye break position that is considered BACK TIRE.
Setup / More / Tire/R Operate / More
E-1032
Screen Key
• TIRE HIGH PRESSURE Turns on its Output for entire
length of vehicle, then slows down in FRONT TIRE
and BACK TIRE position ranges
• TIRE OB (On-Board) CTA Slows down in FRONT
TIRE and BACK TIRE position ranges
SEE “TIRE HIGH PRESSURE”.
