Bender ISOMETER isoEV425 User Manual

Installation, connection and commissioning
25
isoEV425_D00126_09_M_XXEN/03.2019

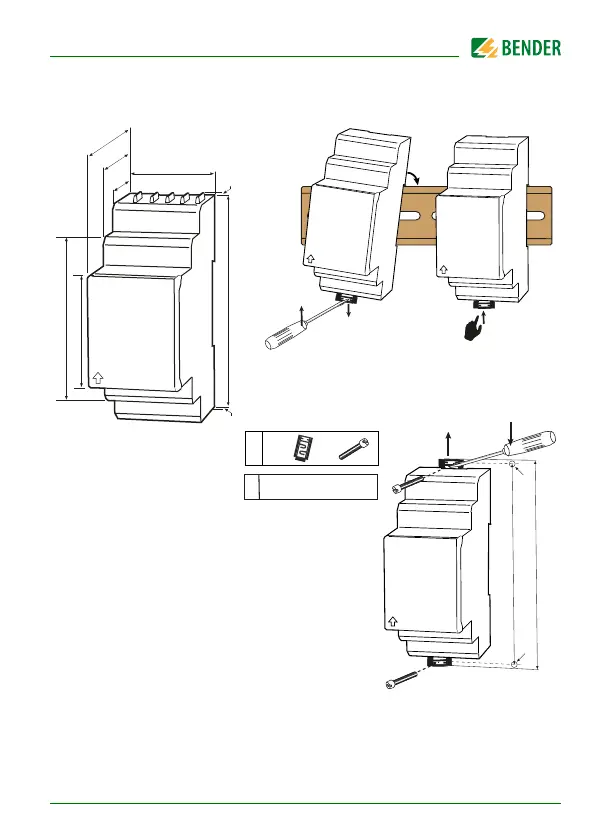

The dimension diagram and sketches outlining how the device can be screw-
mounted and DIN rail mounting are shown below.
All dimensions in mm
The front plate cover can be opened at the lower part marked with an arrow.
93
45
67.5
36
31.1
47.5
74.5
2
2
1.
2.
3.
Click!
&
2 x
1 x
100 107
Click
M4
M4
!
