BENDIX TABS-6 - Page 33

33

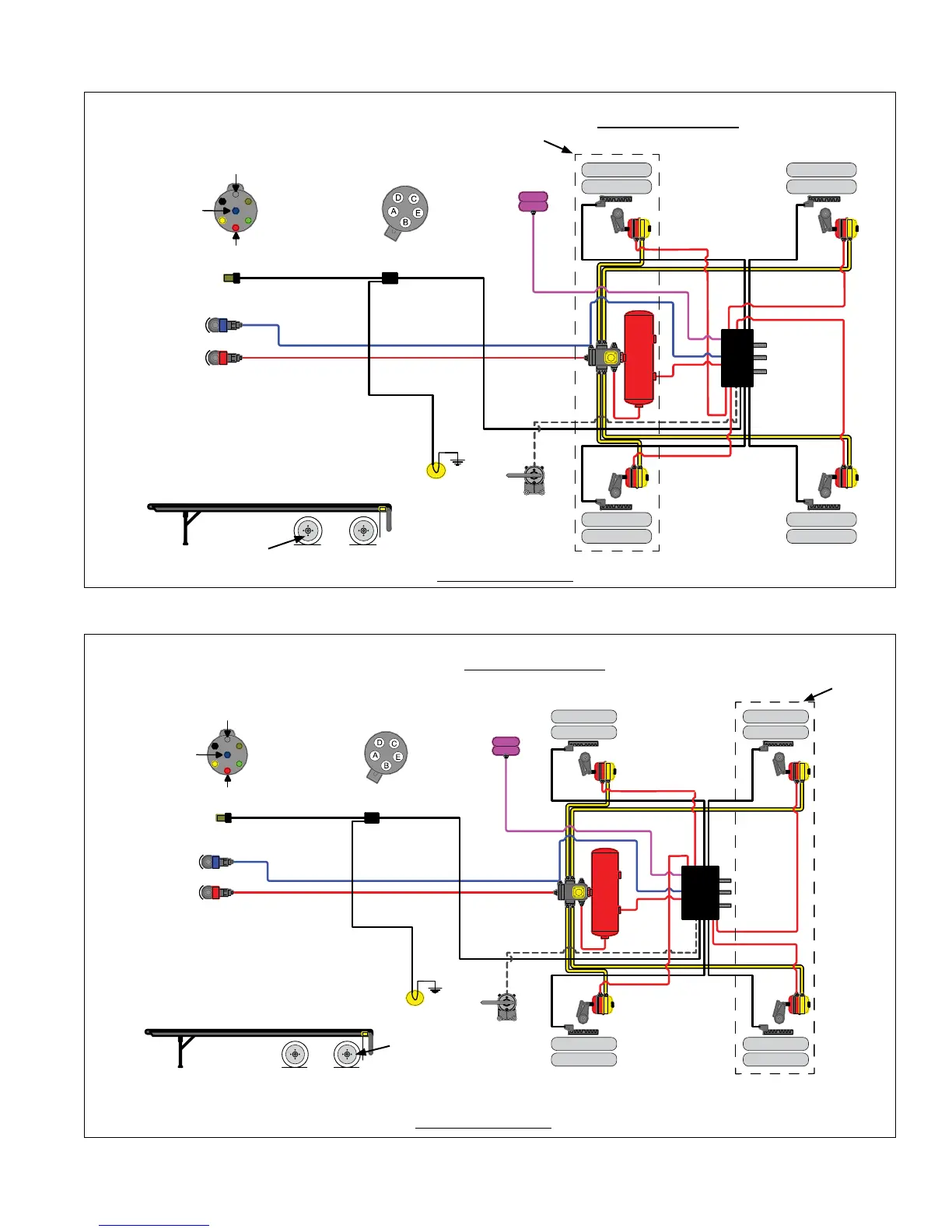

FIGURE 34 - BENDIX
®
TABS -6
™
ADV MC MODULE - TYPICAL 4S/2M SYSTEM WITH FRONT LIFT AXLE
FIGURE 35 - BENDIX TABS-6 ADV MC MODULE - 4S/2M AXLE CONTROL SYSTEM WITH REAR LIFT AXLE
Troubleshooting: System Schematics
5-Pin ABS
Connector
4S/2M - AXLE CONTROL - Front Lift Axle
0 Degree Mounting Orientation
Ignition
Power
Trailer Chassis Harness
Bendix
®
TABS-6
™
Advanced
Multi-Channel
Bendix
®
SR-5
™
Trailer
Spring Brake
Valve
Trailer ABS
Pigtail
Harness
ABS Indicator Lamp
Supply Line
Control Line
Right - “Curb-Side”
Semi-Trailer Spread Axle Trailer
Left - “Road-Side”
7-Pin SAE J560
Connector
P21
P22
Brake Lamp Power
Ground
Bendix
®
WS-24
™
Wheel Speed
Sensors
Bendix
®
WS-24
™
Wheel Speed
Sensors
“S-D”
“S-F”
“S-E”
“S-C”
Air Bellow
(where used)
Load Sensor
(where used)
Dashed-line box
Shows Lift Axle
Lift Axle
A Brake Lamp Power
B Ignition Power
C NC
D Indicator Lamp
E Ground
5-Pin ABS
Connector
P21
P22
4S/2M - AXLE CONTROL - Rear Lift Axle
0 Degree Mounting Orientation
Ignition
Power
Trailer Chassis Harness
Bendix
®
TABS-6
™
Advanced
Multi-Channel
Bendix
®
SR-5
™
Trailer
Spring Brake
Valve
Trailer ABS
Pigtail
Harness
ABS Indicator Lamp
Supply Line
Control Line
Right - “Curb-Side”
Semi-Trailer Tandem Axle Trailer
Left - “Road-Side”
7-Pin SAE J560
Connector
Brake Lamp Power
Ground
“S-C”
“S-E”
“S-F”“S-D”
Bendix
®
WS-24
™
Wheel Speed
Sensors
Bendix
®
WS-24
™
Wheel Speed
Sensors
Air Bellow
(where used)
Load Sensor
(where used)
Dashed-line box
Shows Lift Axle
Lift Axle
A Brake Lamp Power
B Ignition Power
C NC
D Indicator Lamp
E Ground
