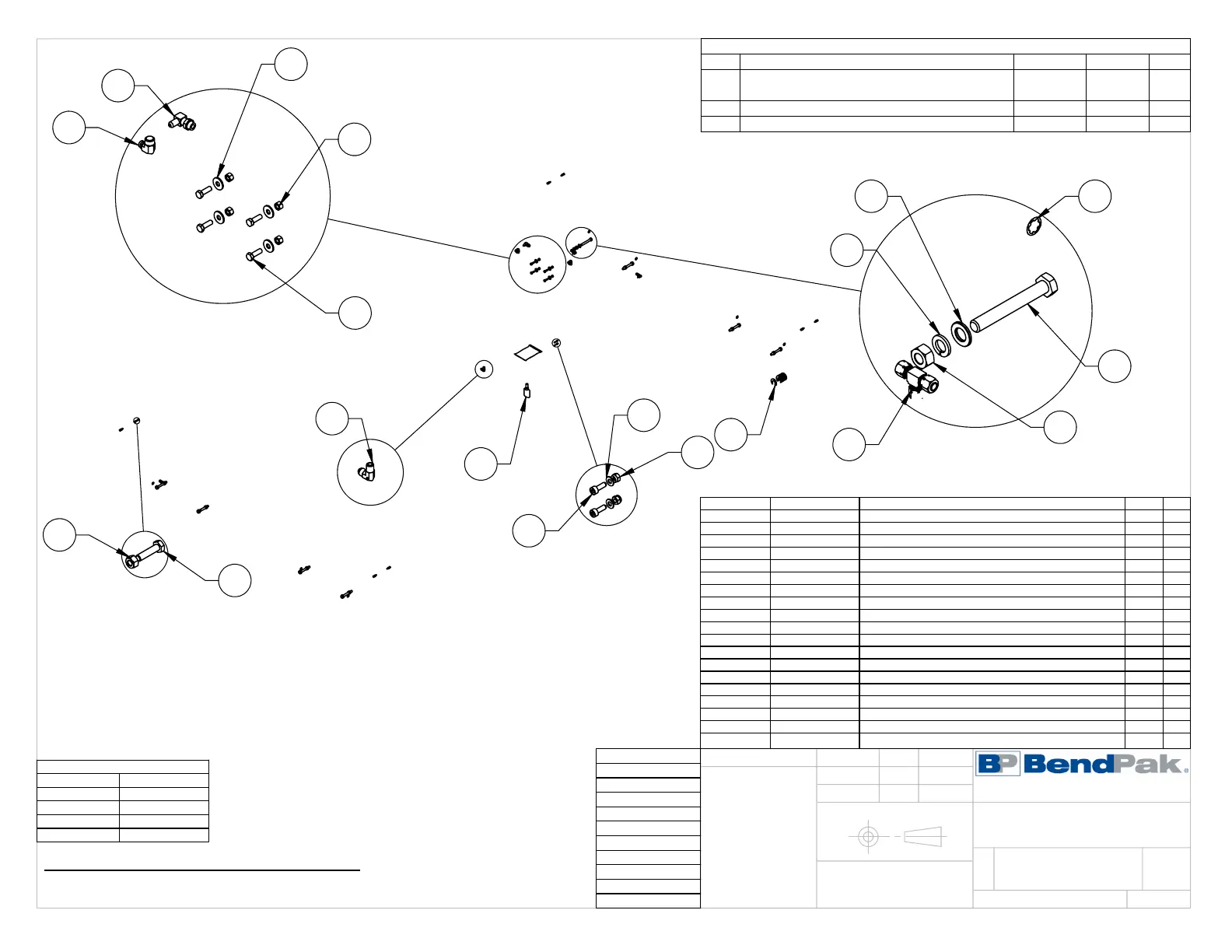

BendPak HD-7W - 5174092; Sheet1; Drawing View1; Detail View A (1: 4)

DIMENSIONS ARE IN MM
☺
18
19
DETAIL A
SCALE 1 : 4
3
2
DETAIL B
SCALE 1 : 8
12
14
5
4
6
DETAIL C
SCALE 1 : 4
10
8
9 1
7
11
DETAIL D
SCALE 1 : 8
13
DETAIL E
SCALE 1 : 4
16
15
17
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
REPLACED 5550004 WITH 5550089, 5550489
WITH 5550395, UPDATED NEXT ASSEMBLIES
10/29/2013 TM 00593
F ADDED 5550025 AND 5580012 12/12/2019 CA 01120
G REMOVED 5550025 07/14/2021 TM 01316
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5505031 ROTOR CLIP 12mm SS 8 -
2 5530756 HHB M6 x 1.0 x 25mm 8 -
3 5535357 NUT M6 x 1.0 NL 8 -
4 5535001 NUT M8 x 1.25 NL 4 -
5 5545340 WASHER M8 x24 FLAT 4 -
6 5530010 HHB M8 x 1.25 x 25 4 -
7 5530009 HHB M12 x 1.75 x 90 CL8.8 8 -
8 5545201 WASHER, M12 SPRING LOCK 8 -
9 5545347 WASHER, M12 FLAT WASHER 8 -
10 5535354 NUT, M12 x1.75 8 -
11 5550395 FTG TEE -04 COMP x -04 COMP x -04 COMP 3 -
12 5550089 FTG ELB -04 COMP x -06 NPT 2 -
13 5550106 FTG ELB -04JIC x 3/8” NPT 1 -
14 5550008 FTG ELB -04 JIC -06L ORB 1 -
15 5545009 WASHER, Ø4.3 x Ø9mm x 0.8mm 2 -
16 5530008 SHCS M4 x 0.7 x 12 BOC 2 -
17 5535010 NUT M4 X 0.7 NL 2 -
18 5545535 C WASHER SHIM FOR LIFTS 20 -
19 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
WHERE USED
HD-7W HD-7500BLX
HD-7P HD-9STX
HD-9 HD-75BXT
HD-9XL HD-7500BL
HD-9XW HD-7500BLX
NEXT ASSEMBLY
5250164
5250167
5250168
5250169
5250184
5250185
5250187
5250188
5250189
5250338
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5174092
HD-7/9/7500 PARTS BAG
08/08/2008
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR
07/26/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
