18
44.0
19.5
9271
9227
3
1
2 4
5
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
D
WAS 9284 NOW 9227, WAS 9268mm* NOW
9177mm*, UPDATED TITLE TO REFLECT
INVENTORY
04/07/2015
MR
00683
E
E-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
12/21/2017
08/21/2018
TM
TM
00909
00972
F
ADDED 5535358 AND 5545342
07/10/2020
TM
01174
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5595011
CABLE, LIFTING Ø10mm
9177mm*
-
2 5746022
Ø10 THREADED CABLE CONNECTOR
1
D
3 5746021
Ø10 CABLE END CONNECTOR
1
E
4 5545342
WASHER M18 FLAT
1
-
5 5535358
NUT M18 x 2.5 NL
1
-
NEXT ASSEMBLY
5250164
WHERE USED
HD-7W
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
AC
5595917

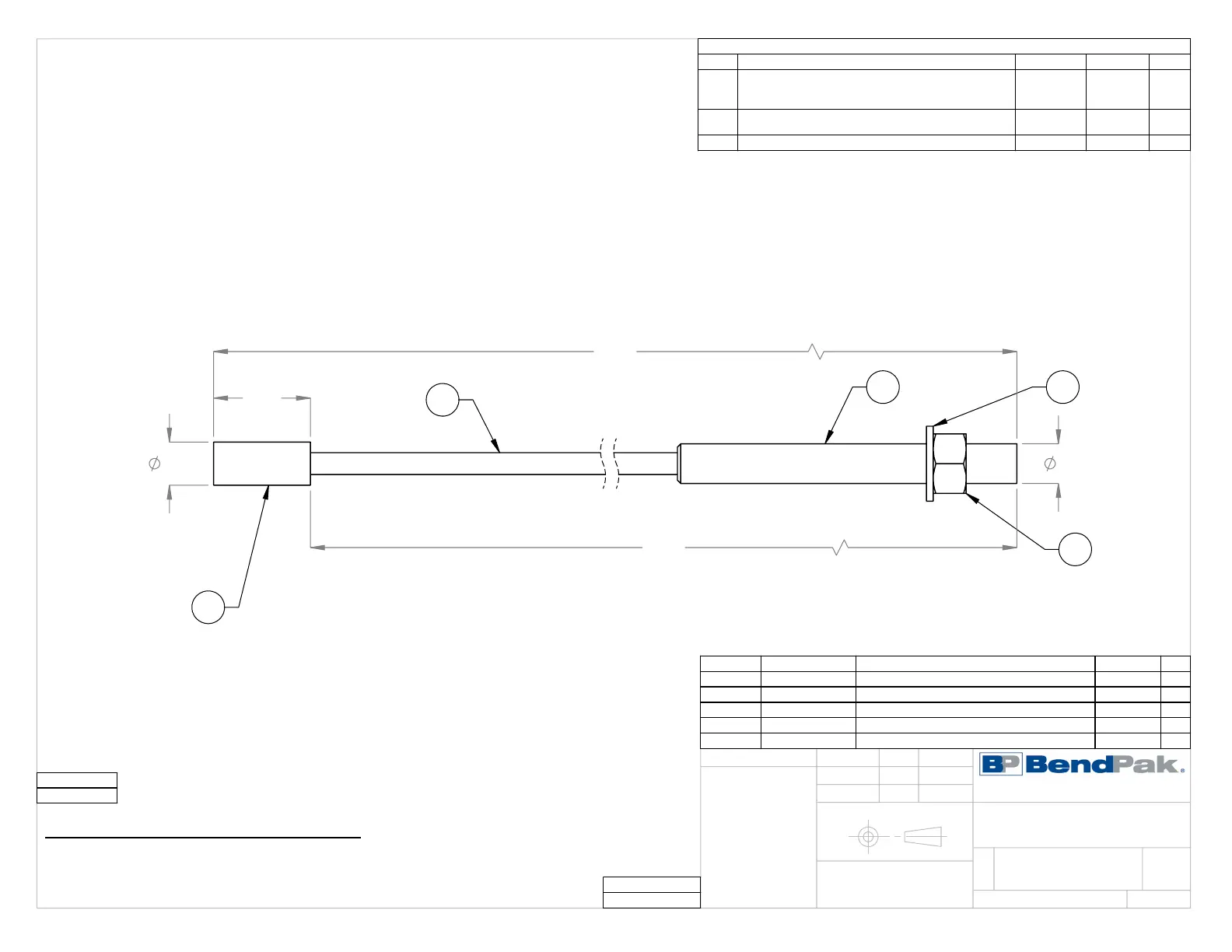

HD-7W CABLE ASSEMBLY
Ø10 x 9271mm
06/03/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR
08/28/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE
SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED
.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM
1.
LENGTH SHOWN IS AFTER SWAGING
2.
ITEM 1 QTY FOR REFERENCE ONLY
3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT
4.
