10853
18.0
44.0
19.5
10897
3
1 2
5
4
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
H
H-001
H-002
WAS 10877 NOW 10897
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLY
08/22/2013
01/28/2013
05/20/2013
TM
TM
TM
00541
00562
00593
J
UPDATED BOM REVISION
12/21/2017
TM
00909
K
ADDED 5535358 AND 5545342
07/10/2020
TM
01174
ITEM NO.
PART NUMBER
DESCRIPTION
QTY
REV
1 5595011
CABLE, LIFTING Ø10mm
10837mm*
-
2 5746022
Ø10 THREADED CABLE CONNECTOR
1
D
3 5746021
Ø10 CABLE END CONNECTOR
1
E
4 5535358
NUT M18 x 2.5 NL
1
-
5 5545342
WASHER M18 FLAT
1
-
NEXT ASSEMBLY
5250164
WHERE USED
HD-7W
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
GJZ
5595022

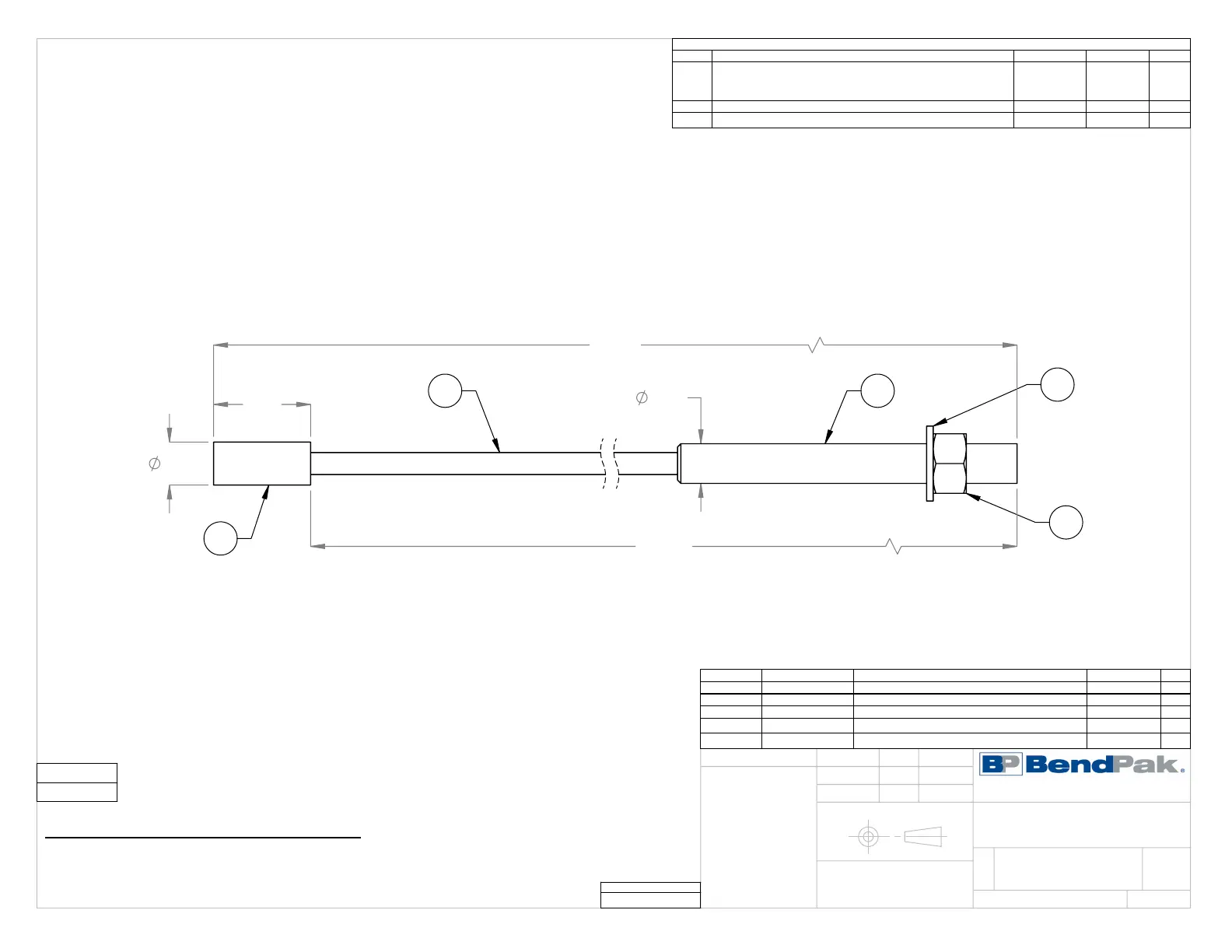

HD-7W CABLE ASSEMBLY
Ø10 x 10897mm ST
01/31/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE
SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED
.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM
1.
LENGTH SHOWN IS AFTER SWAGING
2.
ITEM 1 QTY FOR REFERENCE ONLY
3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT
4.
