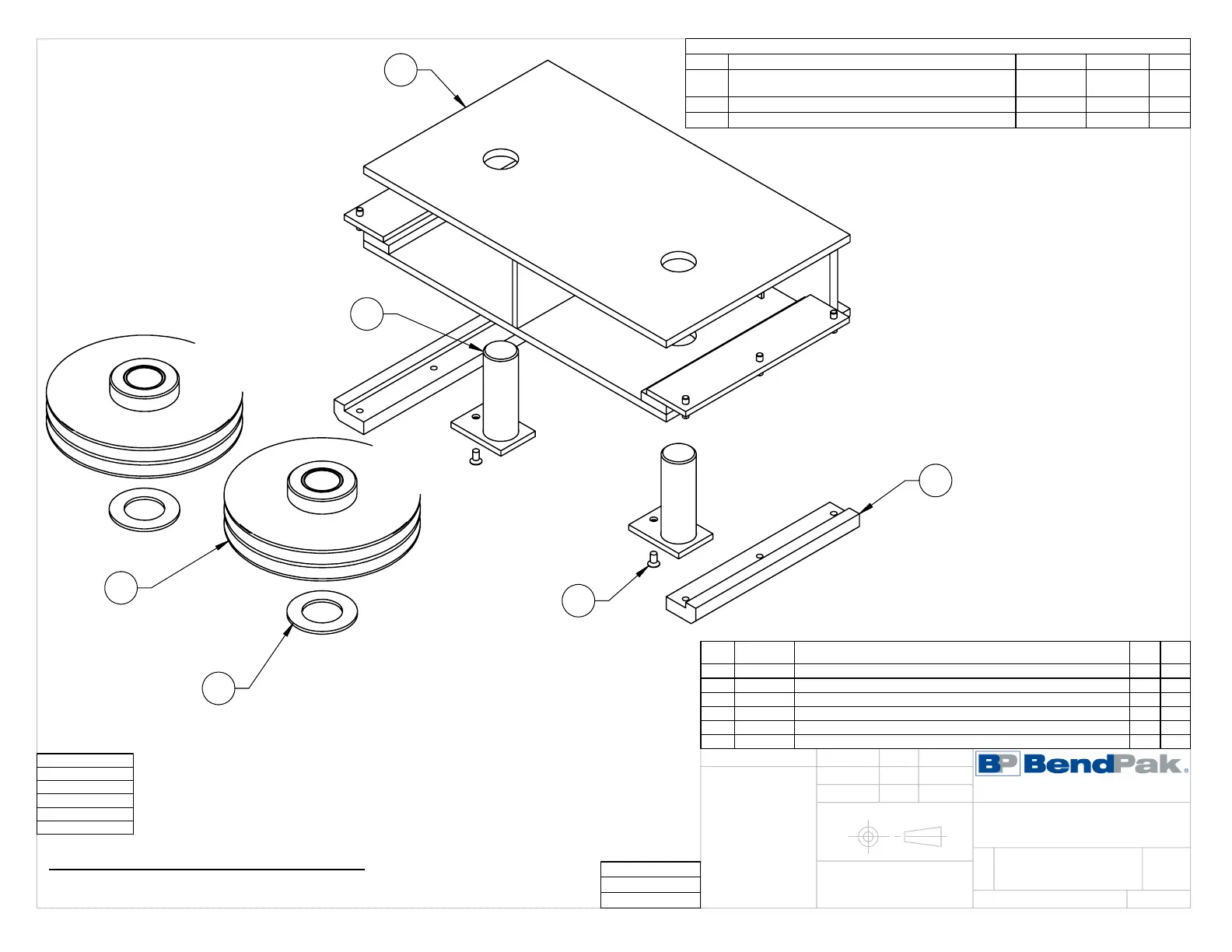

DIMENSIONS ARE IN MM
☺
1
5
6
3
4
2
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5600300
HD-7/7500 PULL BOX WELDMENT
1
A
2 5215185
HD-7 SERIES TWIN SHEAVE ASSEMBLY
2
C
3 5600199
HD-7P/973 PULLBOX PIN WELDMENT
2
B
4 5716160
HD-7P PULL BOX SHEAVE WEAR RING
2
A
5 5716161
HD-7P SERIES PULLBOX POLYETHYLENE SLIDE BLOCK
2
E
6 5530400
FHPS M6 x 1.0 x 12
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
E
E-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
11/13/2017
04/18/2018
TM
CA
00909
00941
F
UPDATED BOM REVISION
05/30/2018
TS
00951
G
UPDATED BOM REVISION
07/14/2021
TM
01316
NEXT ASSEMBLY
5215170
5215171
WHERE USED
HD-7P
HD-7W
HD-7PXN
HD-7PXW
HD-7PBX
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5215186
HD-7 PULL BOX
ASSEMBLY
11/18/2008
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
OR
07/20/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
ASSEMBLE ITEMS AS SHOWN
2.
