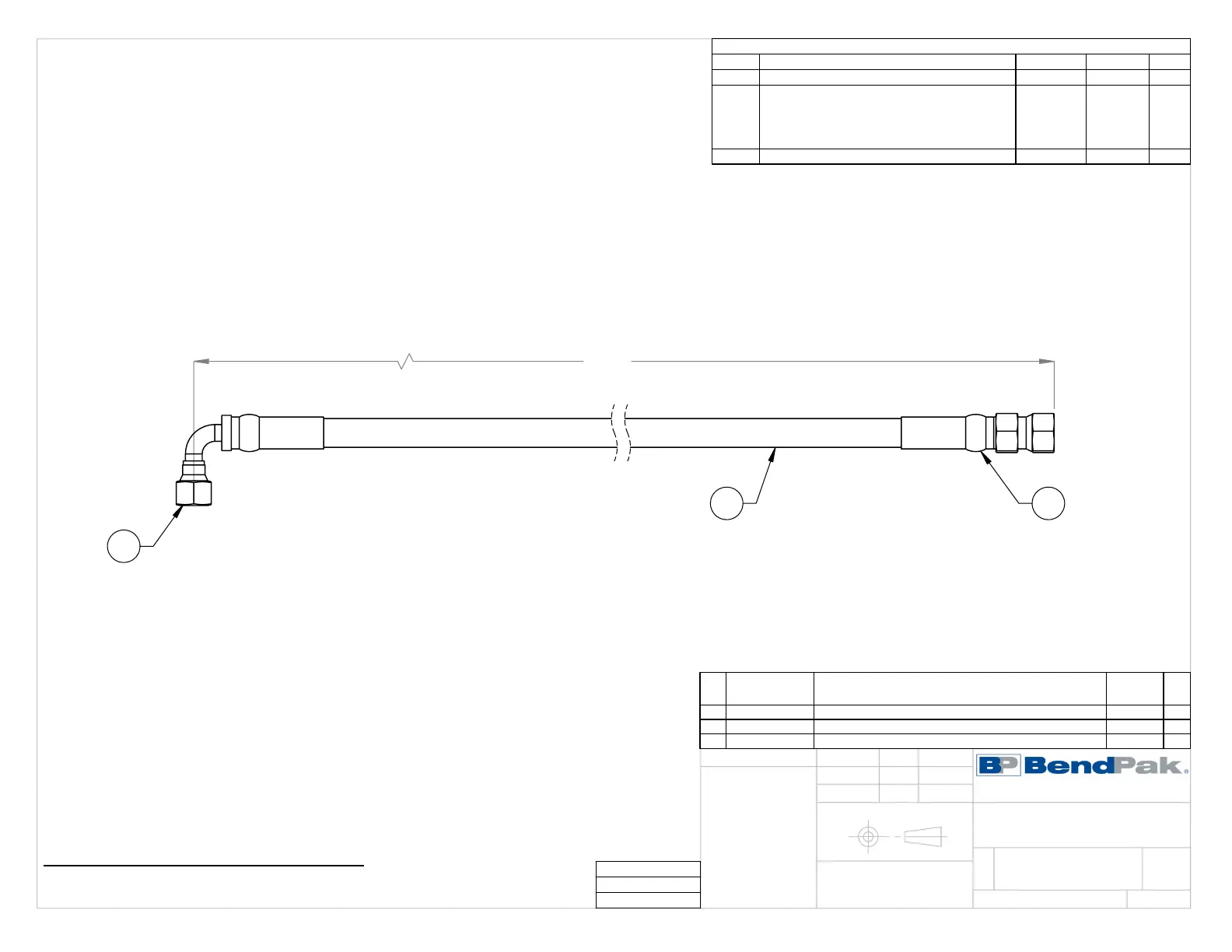

BendPak HD-7W - 5570874; Sheet1; Drawing View1

2492
1
3
2
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B REPLACED ONE END WITH ELBOW 05/09/2008 AC 00178
C
C-001
C-002
C-003
WAS 2950 NOW 2492, UPDATED NEXT
ASSEMBLY, ADDED HD-7P TO TITLE
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
12/08/2008
02/24/2012
11/23/2012
05/24/2013
AC
TM
TM
TM
00174
00501
00562
00593
D REPLACED 5570110 WITH 5570129 12/30/2014 MR 00675
NEXT ASSEMBLY
5250164
5250184
ITEM
NO.
PART NUMBER DESCRIPTION QTY. REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 2860mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 -
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
GJZ
5570874
HD-7P HYD. HOSE ASSY
Ø6.4 x 2492mm
01/02/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
VB 02/06/2015
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.
