DIMENSIONS ARE IN MM
☺
A
B
7
6
1
3
11
12
DETAIL A
SCALE 1 : 10
2
4
10
DETAIL B
SCALE 1 : 10
5
8
9

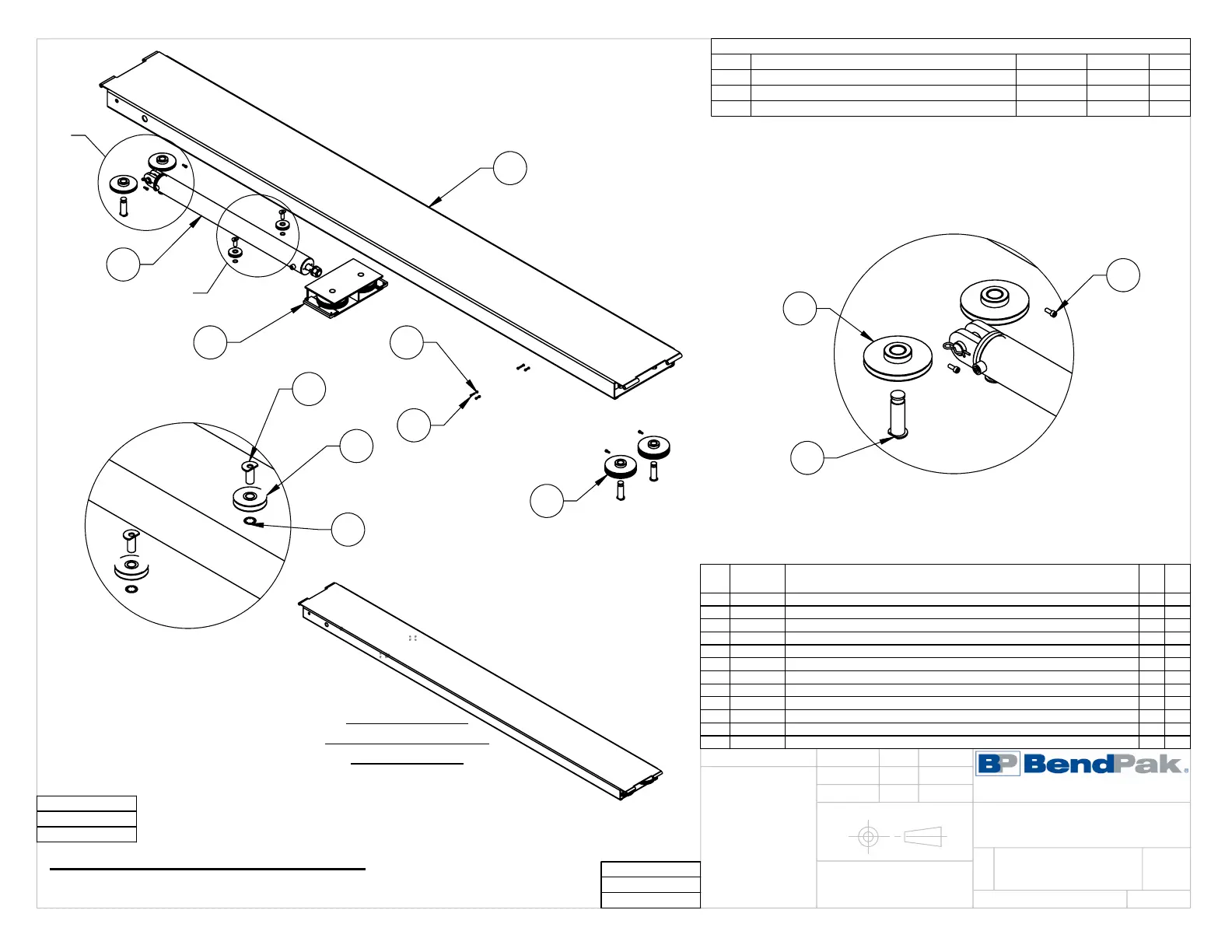

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
WHERE USED
HD-7P
HD-7W
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
W
UPDATED BOM REIVSION
03/26/2021
TM
01290
X
UPDATED BOM REVISION
07/14/2021
TM
01316
Y
UPDATED BOM REVISION
12/10/2021
TM
01367
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5600202
HD-7P/W POWER SIDE RAMP WELDMENT
1
J
2 5215122
HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY
2
E
3 5502112
CYLINDER ASSEMBLY Ø3.5 x 41
1
J
4 5600900
HD-7/7500/9 RAMP SHEAVE SHAFT WELDMENT
4
E
5 5575103
HD-7/973/7500PBX 76mm DIRECTION SHEAVE ASSEMBLY
2
E
6 5215186
HD-7 PULL BOX ASSEMBLY
1
G
7 5215185
HD-7/7500/973 TWIN SHEAVE ASSEMBLY
2
C
8 5600301
HD-7/7500/973 DIRECTIONAL SHEAVE PIN WELDMENT
2
C
9 5505032
ROTOR CLIP Ø18mm SS
2
--
10 5530776
SHCS M8 x 1.25 x 20mm
4
--
11 5530047
HHB, M6 x 1 x 30mmL
4
--
12 5535357
NUT M6 x 1.0 NL
4
--
NEXT ASSEMBLY
5245384
5245388
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Y
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
GJZ
5215170
HD-7P/W POWER SIDE
RAMP ASSEMBLY
10/20/2008
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
