DIMENSIONS ARE IN MM
☺
3
1
6
2
5
4
7

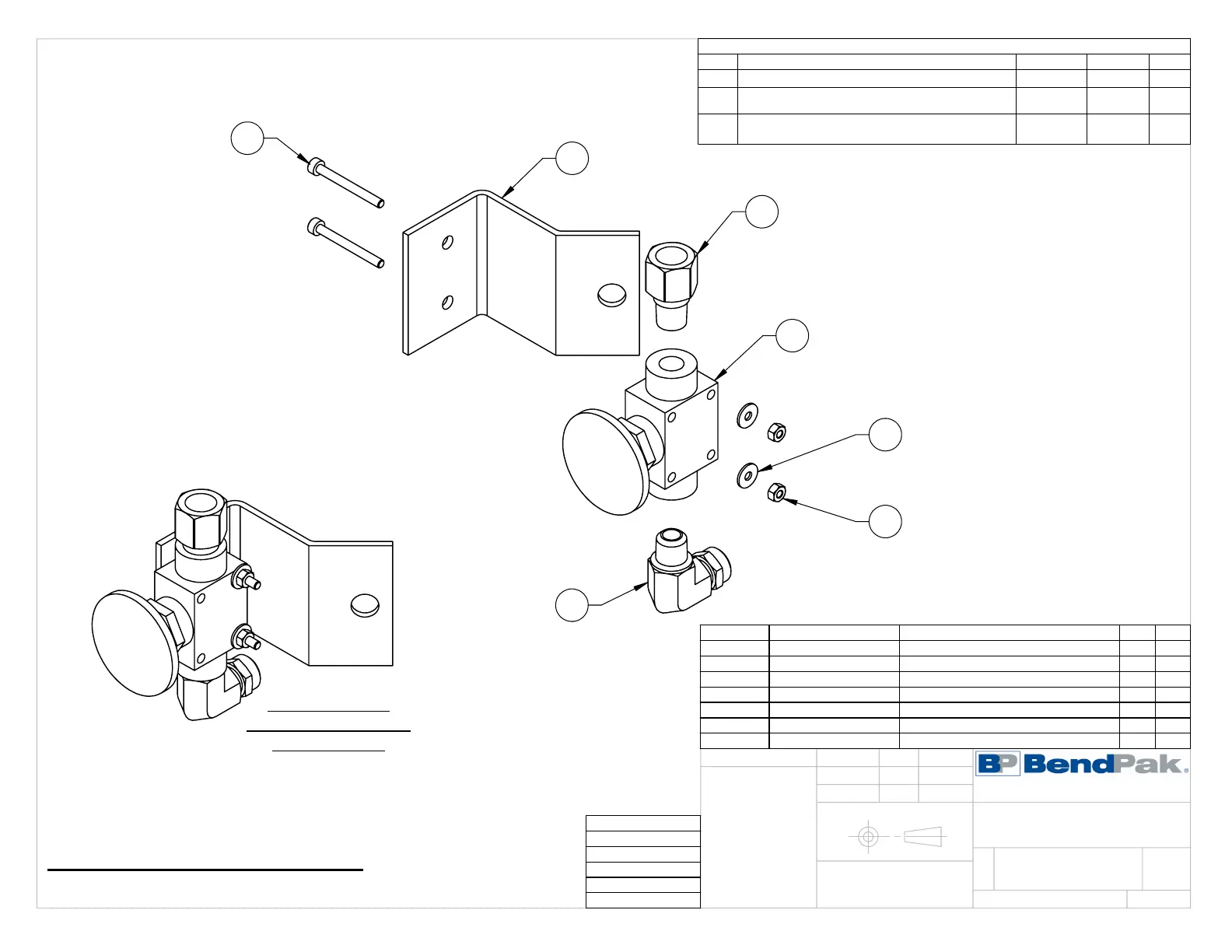

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
E
REPLACED 5550481 WITH 5550087
10/29/2013
TM
00593
F
REPLACED 5590240 WITH 5590175, UPDATED
NEXT ASSEMBLIES
05/05/2015
MR
00683
G
SWITCHED POSITIONS OF 5550087 AND
5550486, UPDATED NEXT ASSEMBLY
06/16/2016
TS
00765
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5700031
ZERO ANGLE MOUNTING BRACKET
1
C
2 5590175
PUSH BUTTON AIR VALVE
1
-
3 5530043
SHCS M3 x 0.5 x 30
2
-
4 5545024
WASHER, M3 x 9mm FLAT
2
-
5 5535020
NUT M3 x 0.5 NL
2
-
6 5550087
FTG ELB -04 COMP x -02 NPT
1
-
7 5550486
FTG NPL -02 NPT x -04 F NPT
1
-
NEXT ASSEMBLY
D4-12 SERIES
HD SERIES
HDS SERIES
HDSO SERIES
PL-12000DP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5215096
PUSH BUTTON AIR
ASSEMBLY
3/14/2008
DO NOT SCALE DRAWING
2:3
SCALE:
THIRD ANGLE PROJECTION
CA
09/02/2015
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
