BendPak HD-9AE - Floor Plan; General Specifications

9

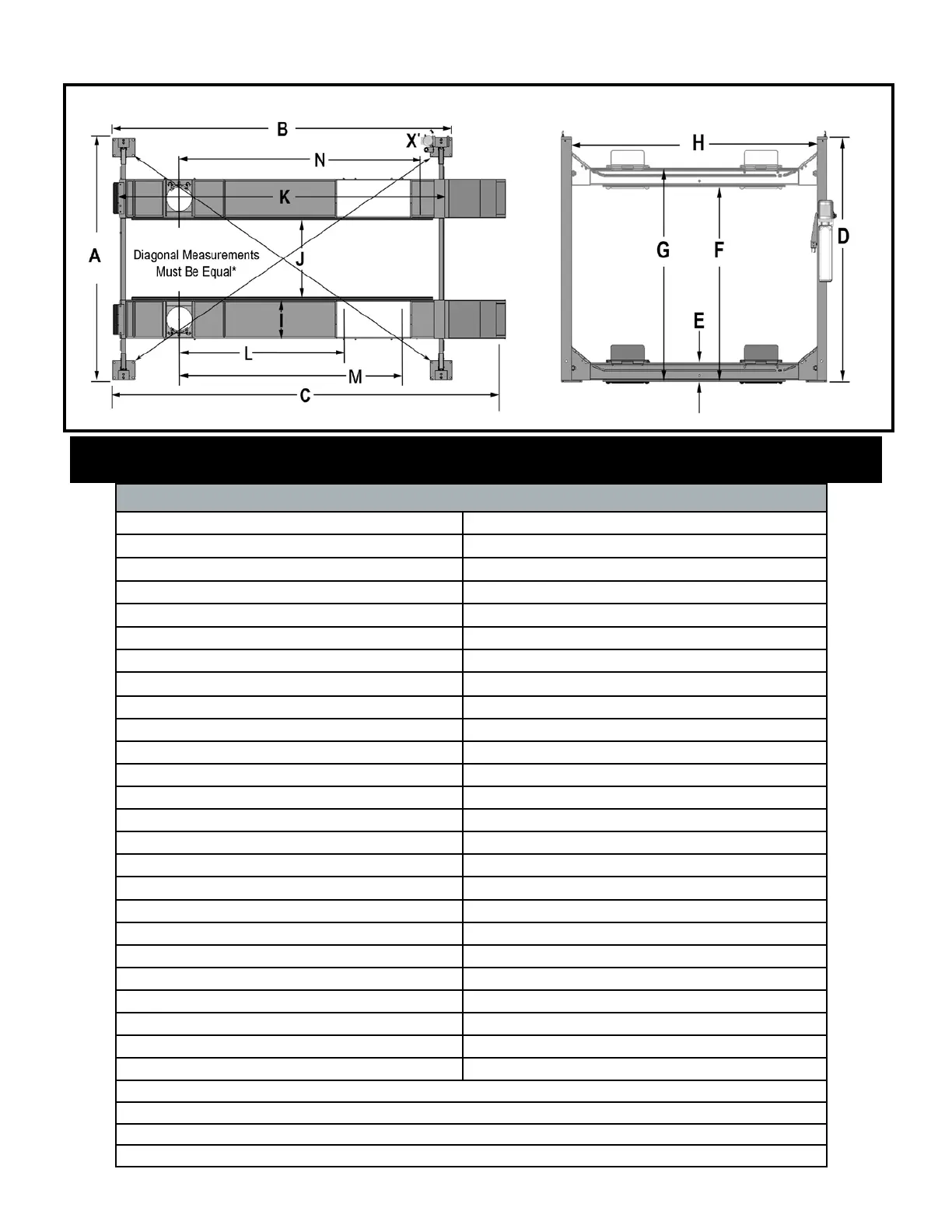

FLOOR PLAN / GENERAL SPECIFICATIONS
HD-9AE
Lifting Capacity 9,000 lbs / 4082 Kg.
Max capacity / front axle 4,500 lbs. / 2,041 kg
Max capacity / rear axle 4,500 lbs. / 2,041 kg
A - Overall Width 127” / 3,226 mm
B - Outside Length 198” / 5,028 mm
C - Overall Length 224” / 5,695 mm
D - Height of Columns 88” / 2,232 mm
E - Min. Runway Height 6.9” / 125 mm
F - Max. Rise 70” / 1,778 mm
G - Max Lifting Height 76.9” / 1,953 mm
H - Width Between Columns 117” / 2,972 mm
I - Runway Width 19” / 483 mm
J - Width Between Runways(*) 40” / 1017 mm
K - Length of Runways 188.5” / 4788 mm
L - Min. 4- Wheel Alignment (**) 89.5” / 2275 mm
M - Max. 4 Wheel Alignment (**) 144.7” / 3675 mm
N - Max. 2 Wheel Alignment (**) 159.7” / 4056 mm
Min. wheelbase @ rated capacity: 135”/ 3429 mm
Min. wheelbase @ 75% capacity 115” / 2921 mm
Min. wheelbase @ 50% capacity 95” / 2413 mm
Min. wheelbase @ 25% capacity 80” / 2032 mm
Locking Positions 14
Lock Spacing Every 4” / 102 mm
Lifting Time 45 Seconds
Standard Motor (**) 220 VAC / 60Hz 1 Ph.
Emission sound pressure at Operator Position < 70 dB(A)
* This dimension may be limited with the addition of rolling jacks. See Rolling Jack Specications on Separate page.
** For CE compliant countries see errata sheet included with control panel.
The design, material and specications are subject to change without notice.
NOTE:
TO CHECK IF LIFT IS SQUARE, DIAGONAL MEASUREMENTS OF POSTS AS SHOWN ABOVE MUST BE EQUAL.
