MAINTENANCE
IMPORTANT NOTICE:
• After fitting the new fuse, check that
the terminals are not loose, which
could be the cause of a malfunction-
ing electrical system.
• Fuses with different characteristics to
those indicated, can cause damage
to the electrical system.
MOTORCYCLE LAMP REPLACE-
MENT
Headlamp bulb replacement
To replace the bulbs in the headlamp,
contact a specialised Benelli workshop,
2 3 4
5
FUSE REPLACEMENT
Turn the key to “
“ before checking
to see if a fuse is burned.
1
6
7

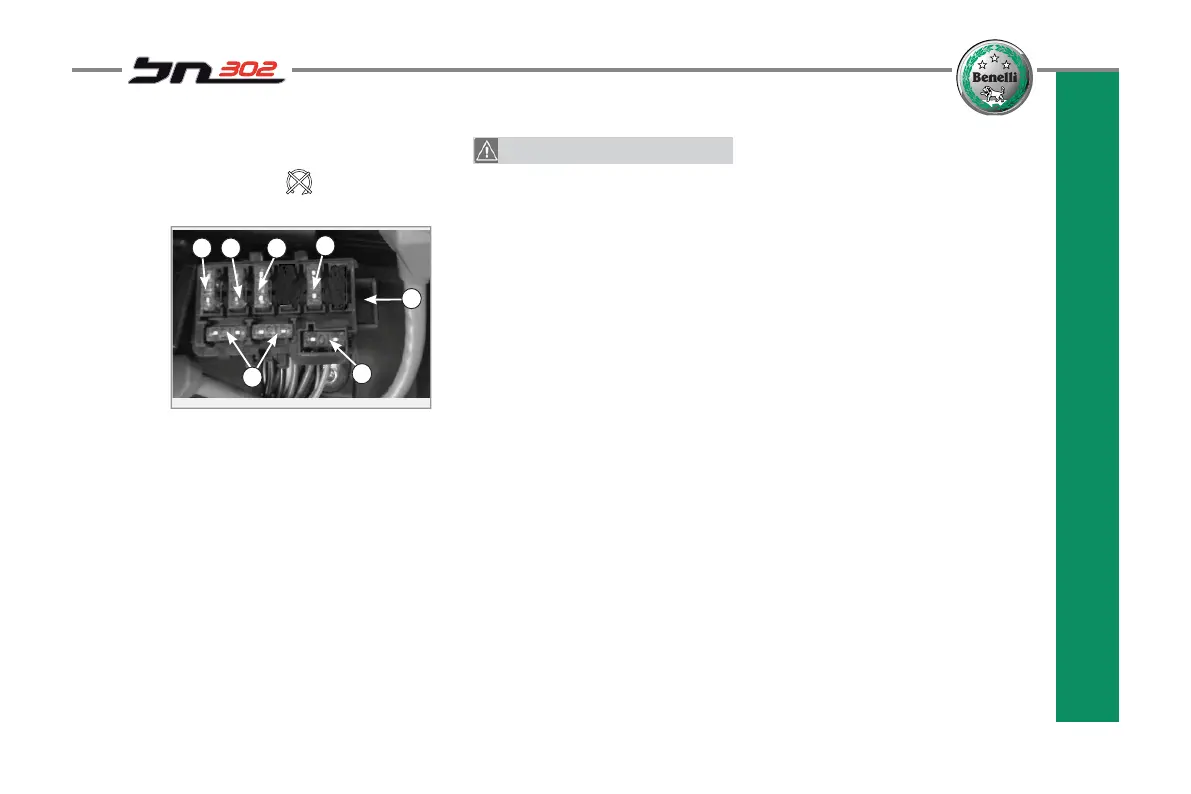

Fuses are present in the battery com-
partment. The following fuses can be
seen in the photo:
1. Fuse box
2. Fuel Pump: 15A (blue)
3. Fan: 15A (blue)
4. ECU1 (power unit): 15A (blue)
5. Services: 10 A(red)
6. Spare fuse 15A (blue)
7. Spare fuse 10A (red)
