85
EN
MAIN CONTROLS

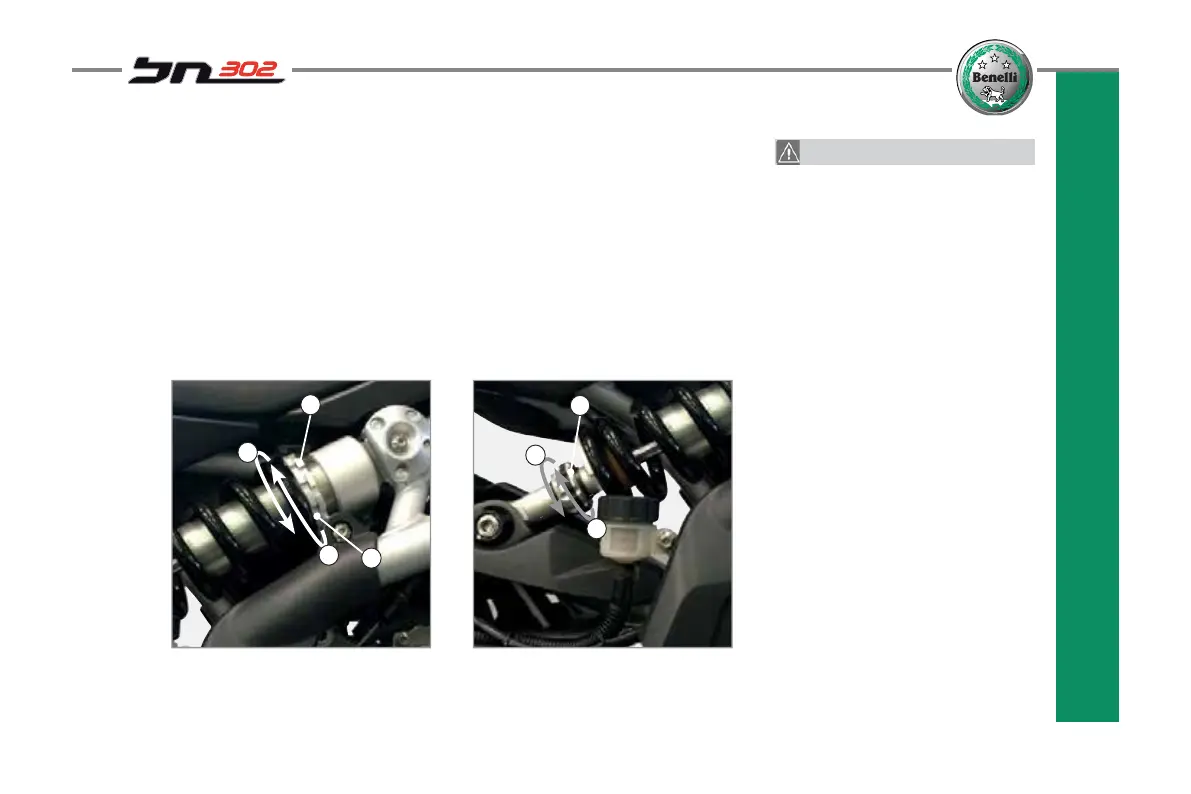

REAR SHOCK ABSORBERS
Spring pre-load adjustment
The rear shock absorber is tted with an
adjustment ring nut for the pre-load of
spring *A" and a return ring nut "D"
Adjust the spring pre-load
as follows:
To increase the spring's preload and
therefore make the suspension more
rigid, turn the adjustment ring nut “A” in
direction (B).
To reduce the spring's preload and
therefore make the suspension softer,
turn the adjustment ring nut “A” in di-
rection (C). At the end of the adjustment,
tighten the return ring nut (D).
Adjustment of the hydraulic
brake action in extension
It is possible to adjust the hydraulic
brake device using the adjustment screw
"E" Turn it in direction "F" to increase the
brake action; turn it in direction "G" to
reduce it.
A
D
IMPORTANT NOTICE:
To avoid damaging the mechanism, do
not try turning over the maximum or min-
imum setting.
Always have the shock absorber adjust-
ed by a Benelli assistance centre.
F
G
E
C
B
