17.2.1.3

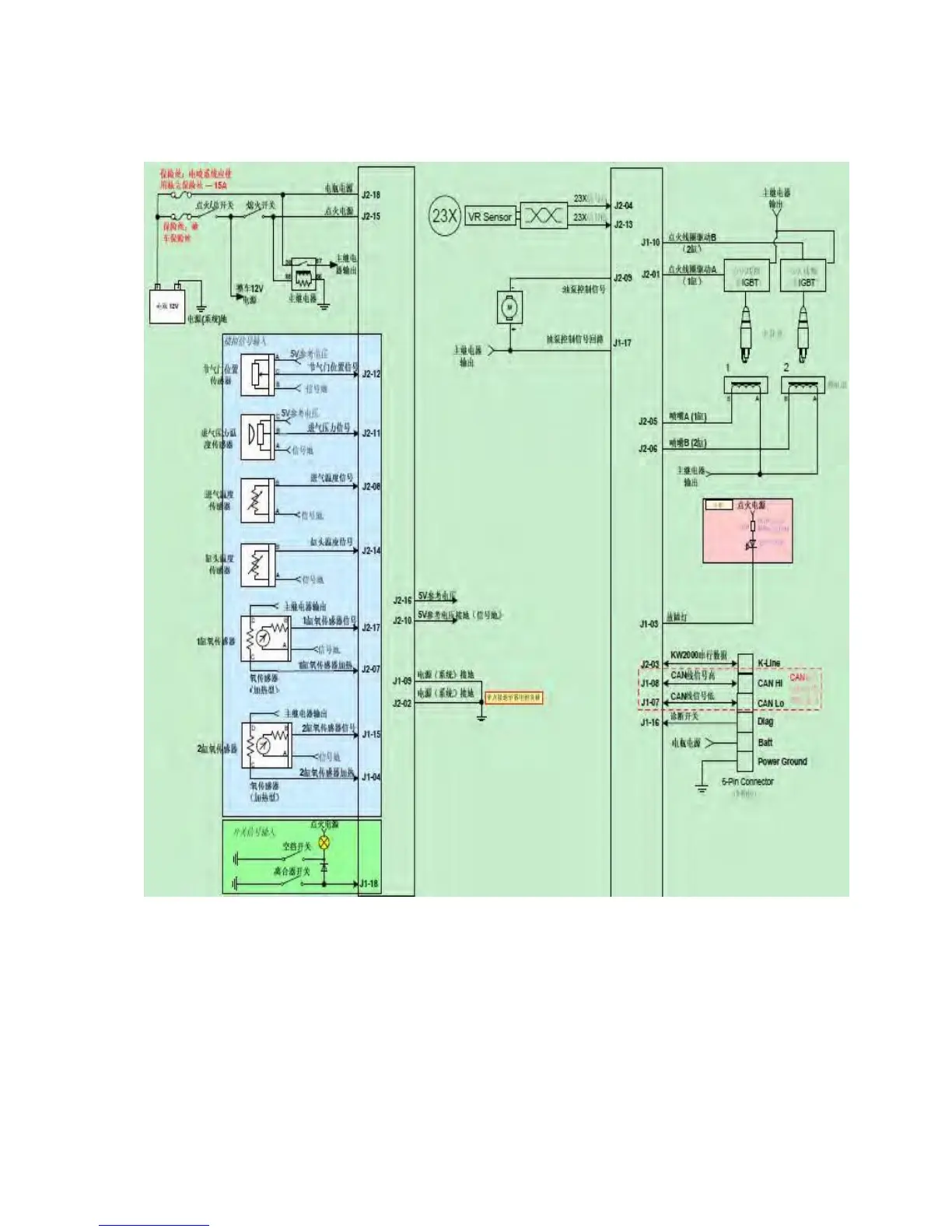

Circuit Diagram of Electronic Injection System
Notes:
a) Keep ECU away from places of high temperature, like muffler or engine;
b) Keep ECU away from water, engine oil or any places of liquid;
c) Keep ECU away from mud or other dirt that would affect the heat dissipation function of ECU;
d) Connect with M8 bolts and make sure the tightening torque is around 3.9Nm, keep the
surface neat to prevent outside force to ECU in case of circuit board bending;
e) The DC power supply voltage of ECU of normal working is between 9V and 16V. W hen it's
working under a voltage not over 26V for one minute, permanent damage would not happen to
ECU, neither when the backward voltage is not over 13V.
