6. Body
*Note
Do not damage the body
when removing it.
Do not damage the hook
of the body.
Do match the grooves for
the panels.
Correctly install the hooks
of each part.

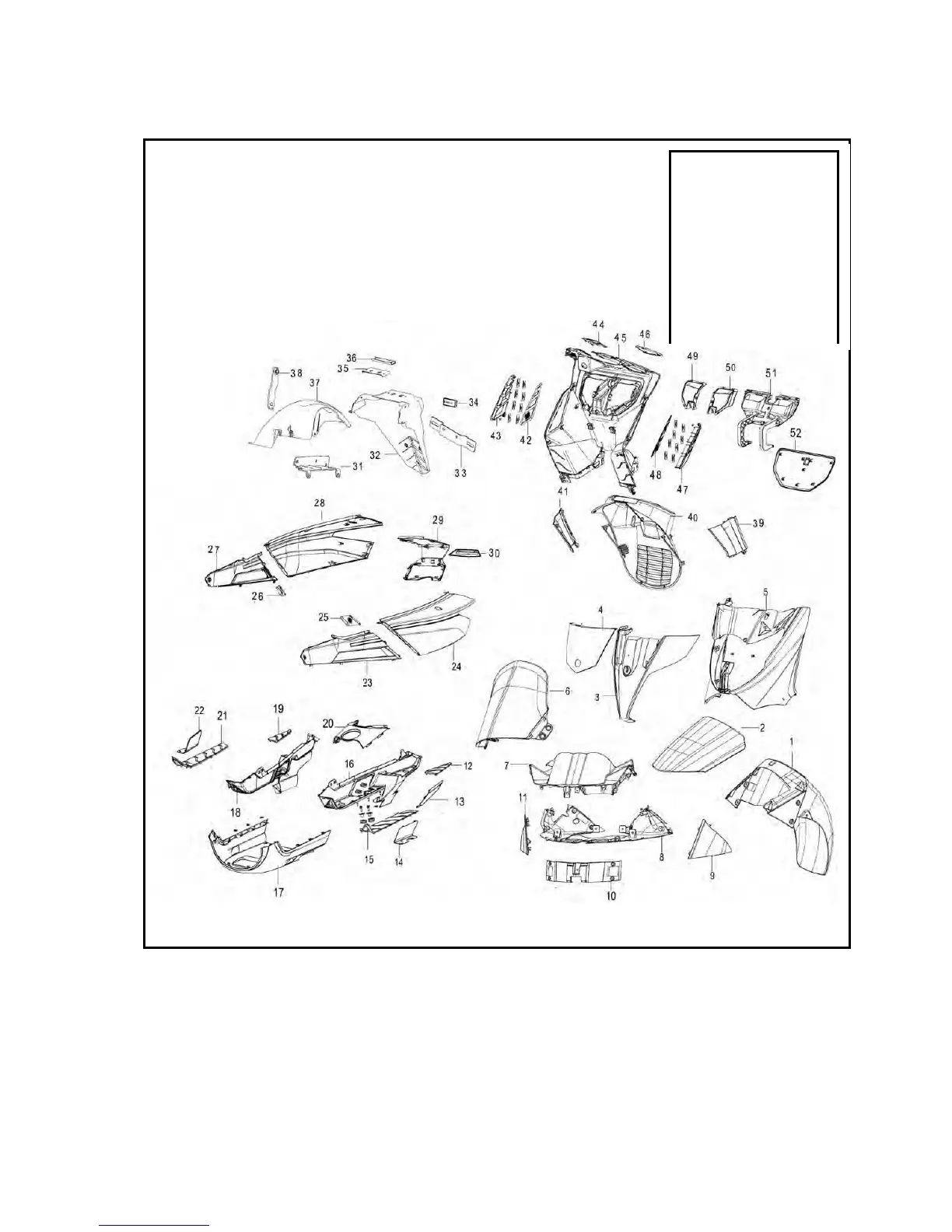

1.) front fender 2.) front fender 3.) front shield panel 4.) decorating plate of the front shield 5.) front shield baseplate
6.) windshield 7.) handlebar front shield 8.) handlebar rear shield 9.) left baffle plate 10.) decorating cover of the
handlebar front shield 11.) right baffle plate 12.) left rubber foot 13.) pedal cover plate 14.) inspection cover 15.) left
rubber foot 16.) Left pedal 17.) Lower connecting plate 18.) Right pedal 19.) right rubber foot 20.) fuel tank guard
21.) right rubber foot 22.) spark plug cover 23.) rear fender installation assembly 24.) Right guard 25.) protecting
net 26.) protecting net 27.) Front left guard 28.) Left guard 29.) rear connecting bracket of the left/right guard
30.) decorating cover plate of the guard 31.) rear fender installation assembly 32.) rear fender 33.) rear license
plate bracket 34.) rear reflector assembly 35.) rear fender bracket 36.) rear fender installation assembly 37.) rear
small fender 38.) rear fender bracket 39.) left connecting bracket 40.) inner guard of the baseplate 41.) right
connecting bracket 42.) protecting vent 43.) right lattice of the foot guard 44.) front shield cover plate 45.) foot
guard 46.) water filler 47.) left lattice of the foot guard 48.) protecting vent 49.) right inspection cover 50.) left
inspection cover 51.) front storage box 52.) back panel of the front storage box
