9.3 Oil pump

Disassembly

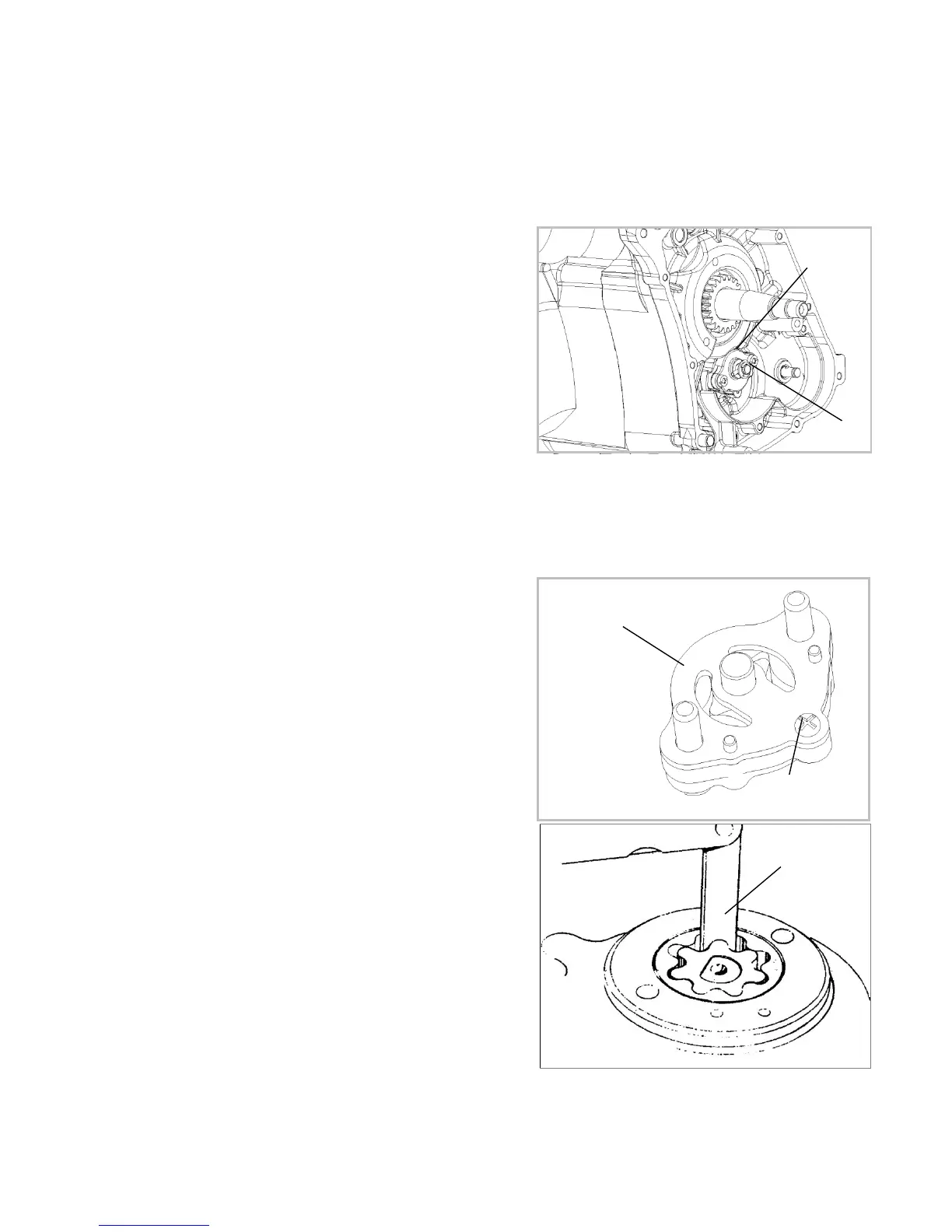

Remove the right cover, flywheel assembly

①

and start gearwheel. Loosen the fixing bolt and

remove the cover plate. Loosen the screw and

remove the oil pump

①：oil pump

②：bolt

②

Remove the screw and the oil pump assembly.

Remove the screw and the oil pump cover.

①

①: oil pump cover

②: screw

②

Check the radial clearance between the inner and

outer rotors.

①

Limit for use: 0.17mm.

①：gauge
