Install the battery in reversal order.
* Note
First positive terminal and then
negative terminal to prevent short circuit.

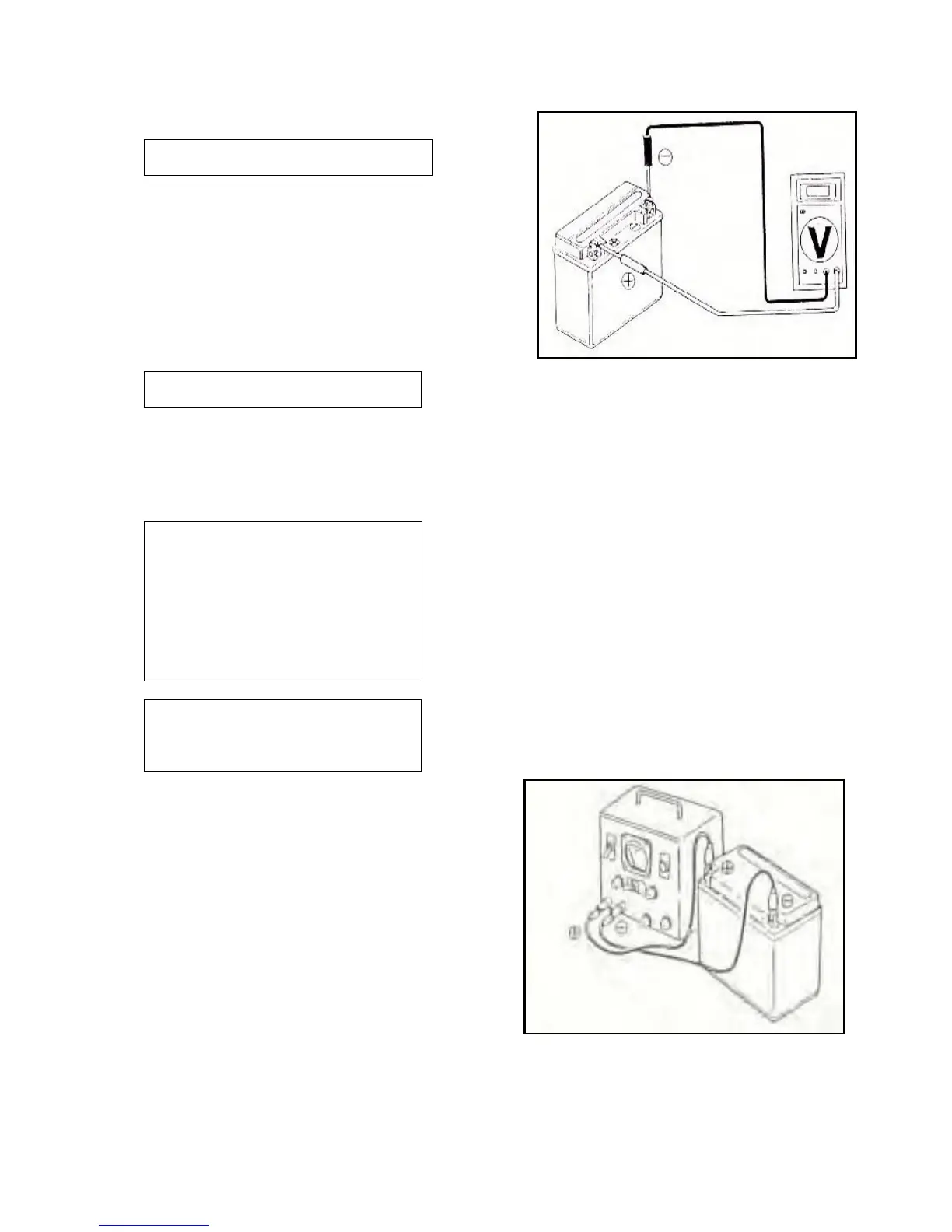

Check the charging situation (open circuit voltage).
Open the battery cover and remove the fixing plate
assembly of the battery.
Remove the lead of the battery connector.
Measure voltage between terminals.
Fully charged: 13.1V
Insufficiently charged: 12.3V (not working for 1h)
* Note
Use a voltmeter to check the charging
situation.
1.3.2 Charging
Connection method: connect the positive terminal of the charger with the positive terminal of the
battery; connect the negative terminal of the charger with the negative terminal of the battery.
Warning!
• The battery should be far away from
a fire source.
• Turn off the charger before or after
charging to avoid explosive danger
caused by spark which may exist in
any connection.
• Comply with the current and time
requirements for charging as stated
on the battery.
* Note
• Except emergencies, you should not
use emergency charging.
• Measure voltage 30 minutes after
the battery is charged.
Charging current: standard: 0.6A
quick: 6.0A
Charging time: standard: 10-15
hours
quick: 30 minutes
Charging completed: open circuit voltage:
above 12.8V
1.4 Charging system
1.4.1 Short-circuit test
Remove the earth lead from the battery.
Install a voltmeter between the negative
terminal and the earth lead. Turn off the
switch. Check short-circuit.
