Benelli ZAFFERAN 250 - Rear Disc Brake

63
Rear Disc Brake
A
Installation torque
of nut 1:5-9N·m
B
Thickness of rear
brake disc4.0mm
Wear limit:3.0mm
C
Brake Block
thickness:6.0mm
Wear limit:5.0mm
D
Rear brake
disc
diameter: 250mm
E
Free stroke of
front brake
handle:10-20mm

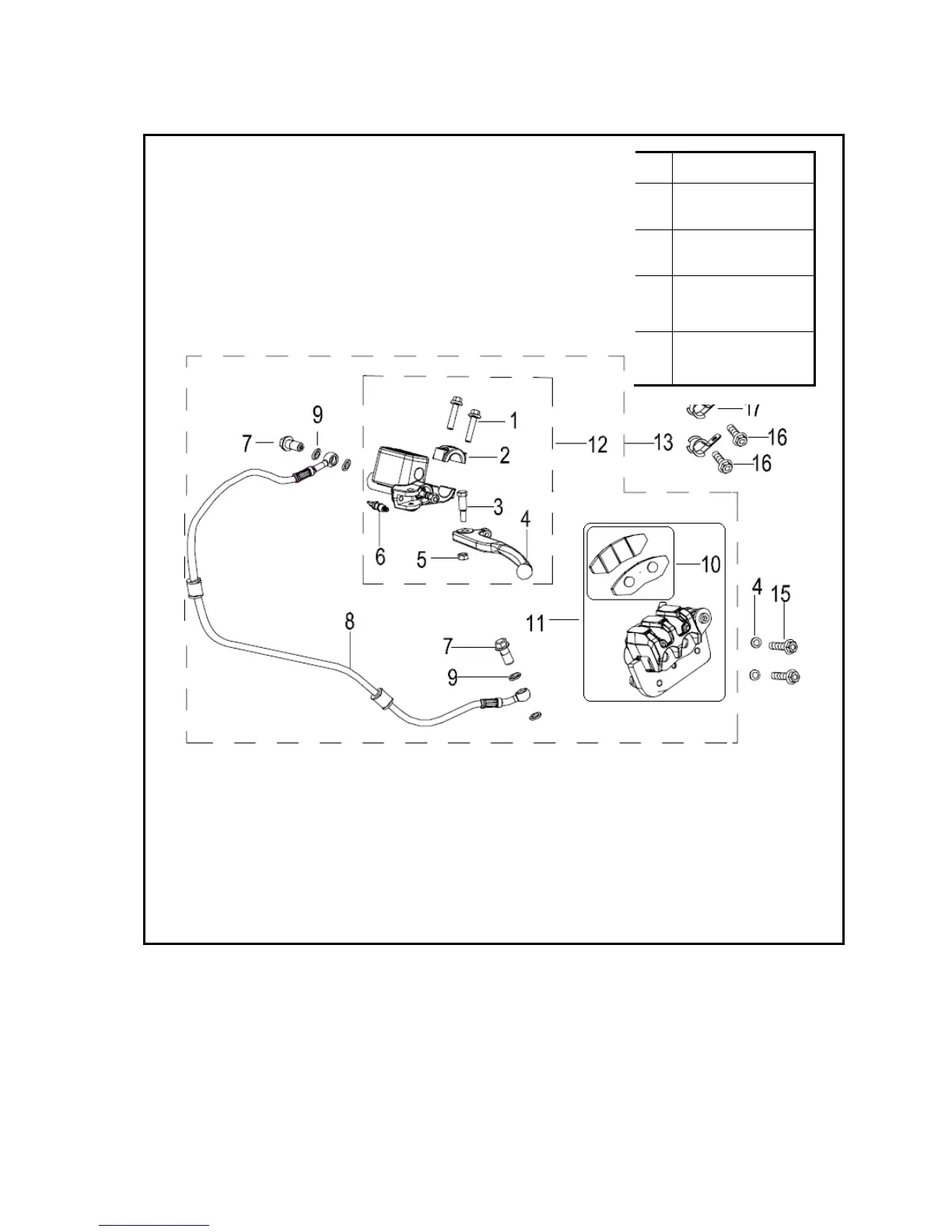

1.) Bolt M6×35 2.) Master Cyl. Strap 3.) Handle Bolt 4.) Rear Brake Lever 5.) Nut M6 6.) Rear
Brake Light Switch 7.) Banjo Bolt 8.) Rear Brake Hose 9.) Washer 10.) Rear Brake Pads 11.) Rear
Brake Caliper Assembly 12.) Rear Brake Master Cylinder Assembly 13.) Rear Brake Assembly 14.)
Washer φ8 15.) Bolt M8×35 16.) Bolt M6×12 17.) Pipe Clamp
