Remove the spark plug cap. Measure the impedance
between the primary side wire of the ignition coil and
the negative terminal.
Standard: 4.5-5.5KΩ±10％（68F）
2.6 Trigger
* Note
Check the trigger on the engine.
Ω
BL/W

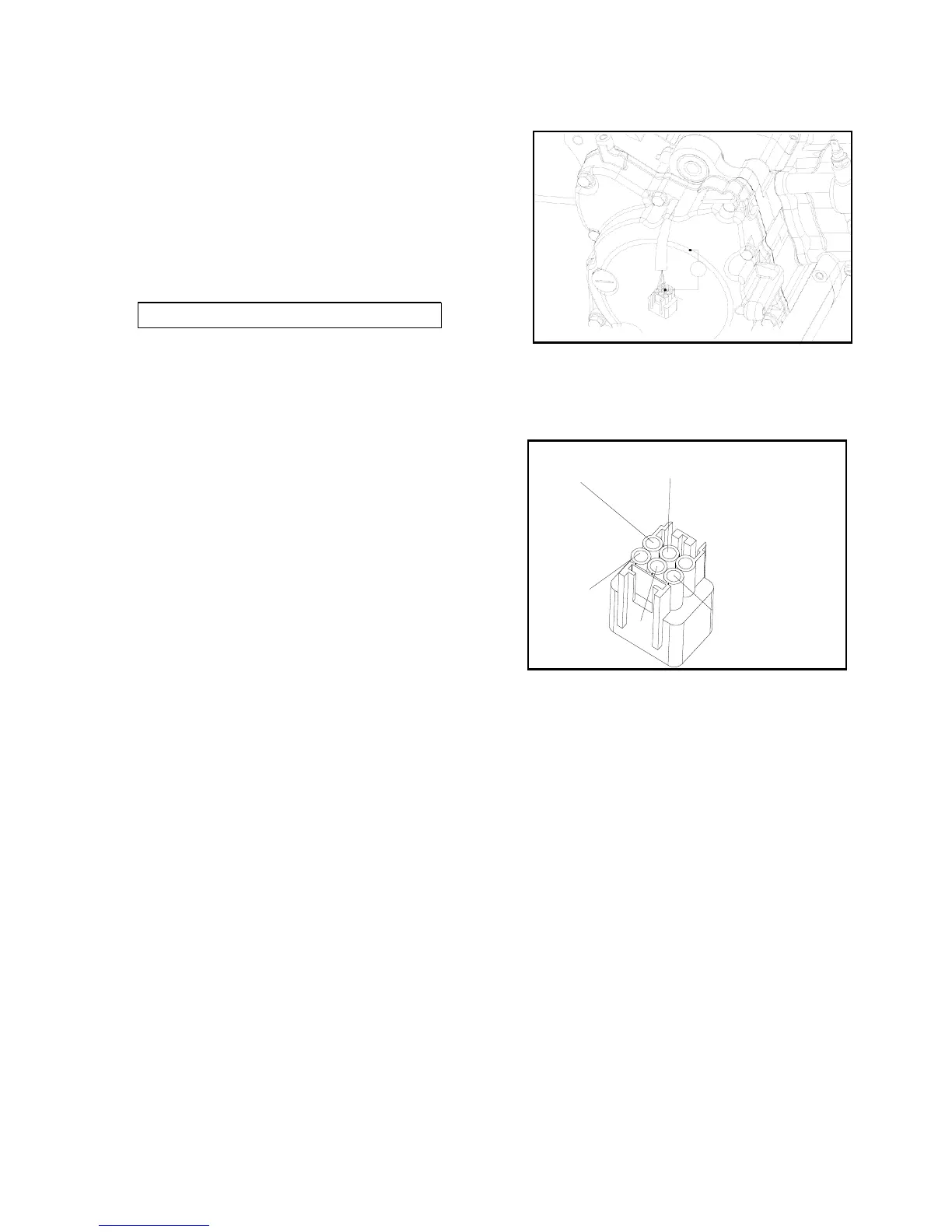

Check:
Remove the body guard.
Remove the trigger terminal.
Measure the impedance between the blue/ white
terminal of the side wire of the engine and the
body GND.
Standard：100-200Ω（68F）
W/G
BL/W
W
W
W
