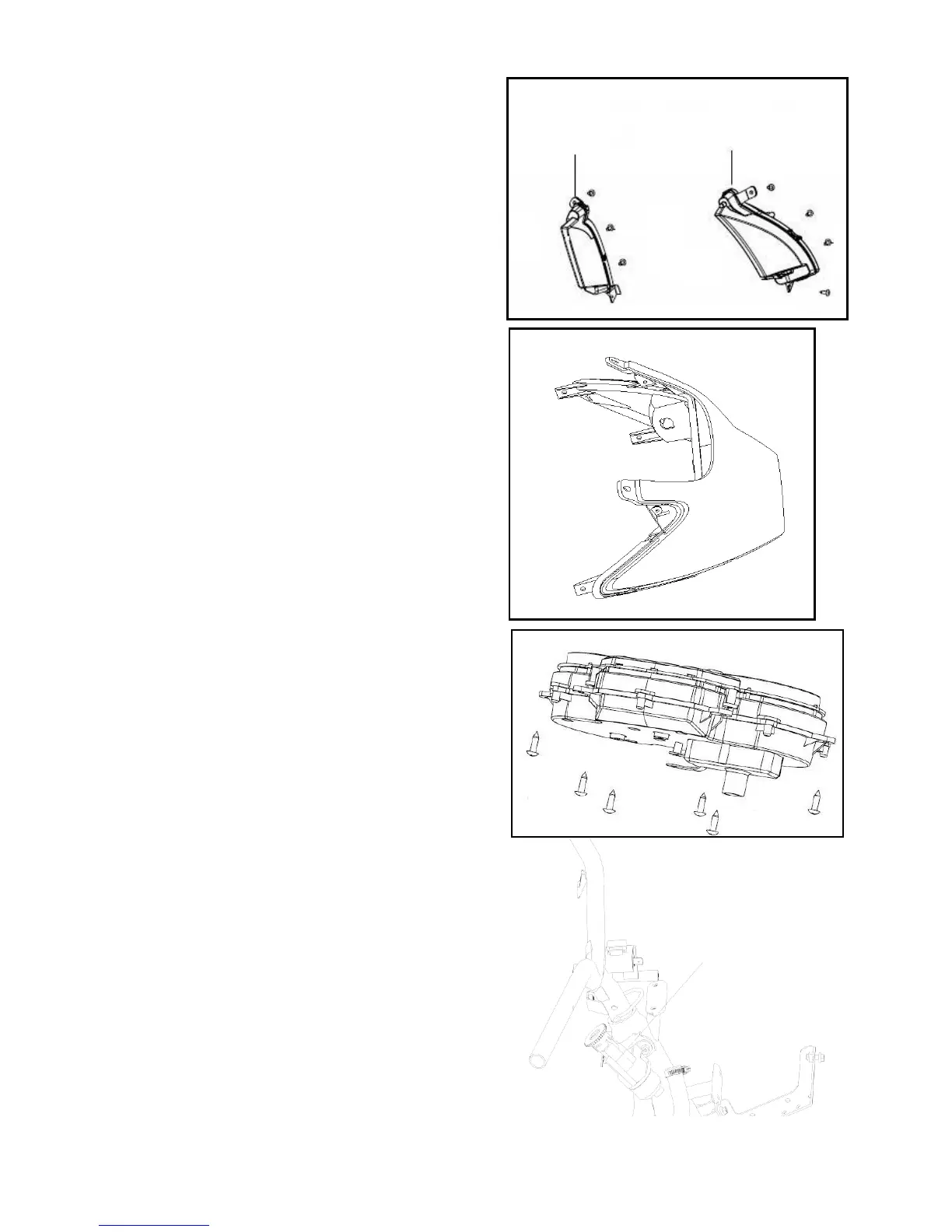

Loosen fixing screws of steering lamps.
Remove the bulb socket from the lamps.
4.4.2 Installation
Install the bulb in reverse order.
①：front right steering lamp ②：front left
steering lamp
4.5 Replacement of tail lamp
bulbs
4.5.1 Disassembly
Remove the cushion assembly and body
guard. Remove the rear armrest. Remove
the fixing screws to dismantle the tail lamp
shield. Disconnect the tail lamp connector
Remove the tail lamp and the rear steering
lamp.
The tail lamp and the rear steering lamps are
integrated.
4.5.2 Installation
Install the tail lamp in reverse order.
4.5.3 Replacement of tail lamp
bulbs
4.5.3.1
Disassembly
Remove the fixing screws to dismantle the tail lamp
bulbs.
Remove the bulbs from the socket
4.5.3.2
Installation
Install the tail lamp bulbs in reverse order.
4.6 Meter
Remove the rearview mirror.
Remove the handlebar cowling and waterproof
connector. Remove the screws.
Remove the odometer assembly to
dismantle the odometer.
Install the odometer in reverse order.
（①：odometer）
4.7 Main switch
4.7.1 Check
Remove the front guard.
Remove the main switch lead terminal.
Check conduction of the terminal.
①
②
Main Switch
