8.4 Rear absorber/Rear Swing Arm
8.4.1 Disassembly of the rear
absorber
Remove the seat and the left/right rear guard.
Remove the rear handrail and the rear fender.
Remove the muffler.
Remove the air cleaner assembly.
Remove the fixing bolts for the rear
absorber.
Remove the rear absorber.
8.4.2 Installation
Install the rear shock absorber.
Torque force:
Upper fixing nut:
37-44 N·m
Lower fixing nut:
22-29 N·m
Install the rear absorber.
Install the air cleaner.
Install the muffler.
Install the rear handrail and the rear fender. Install the
seat and the rear left/right guard.

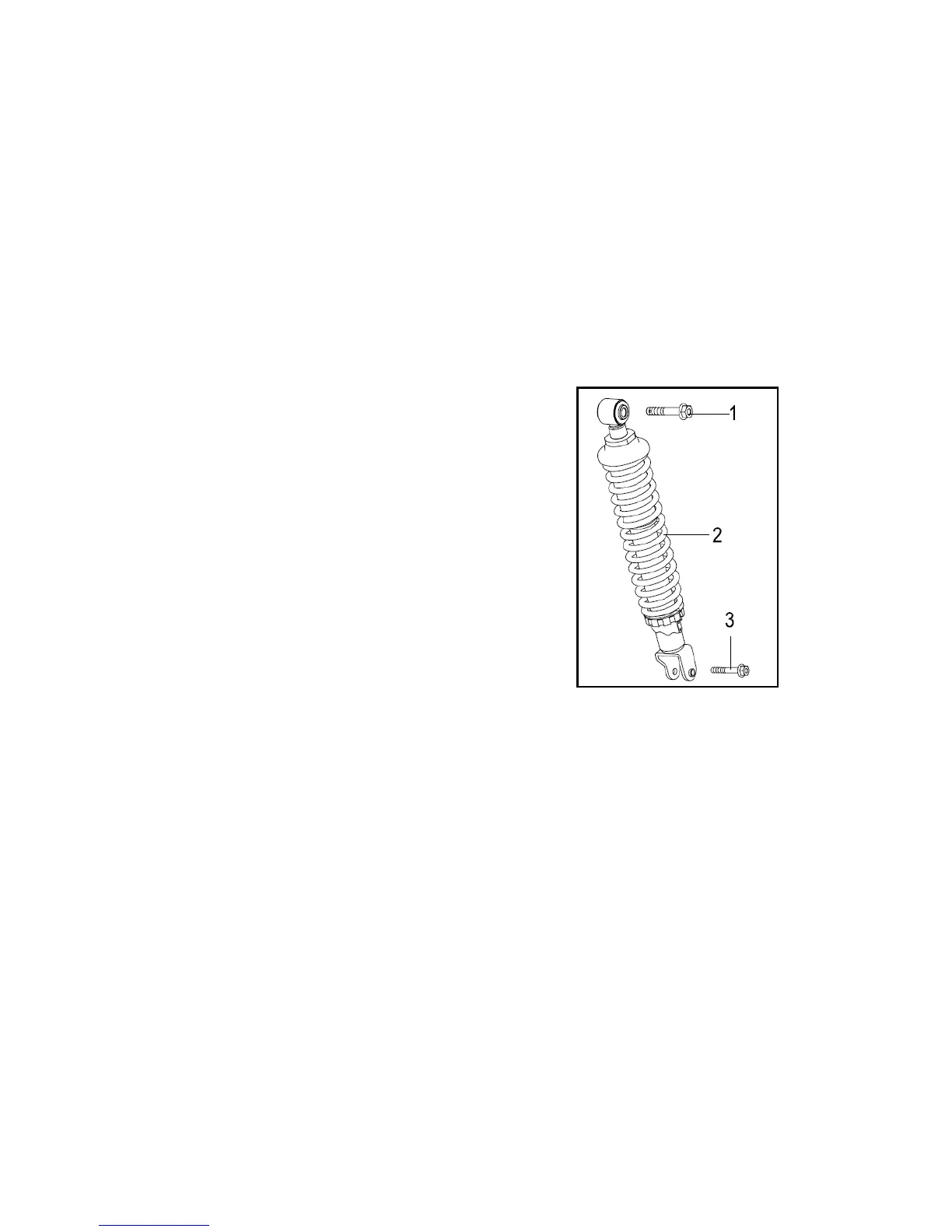

①：bolt ②：rear absorber assembly ③：bolt
