3.4.3 Check GND Loop of the Starter Relay
Remove the starter relay connector
Check conduction between the black wire of the
lead terminal and the body ground connection.
When the starter button is pressed, it shall show
good conduction between the black wire of the
terminal and the body ground connection.
Check conduction of the starter button and leads
when it is not conducted.
Ω
3.4.4 Check

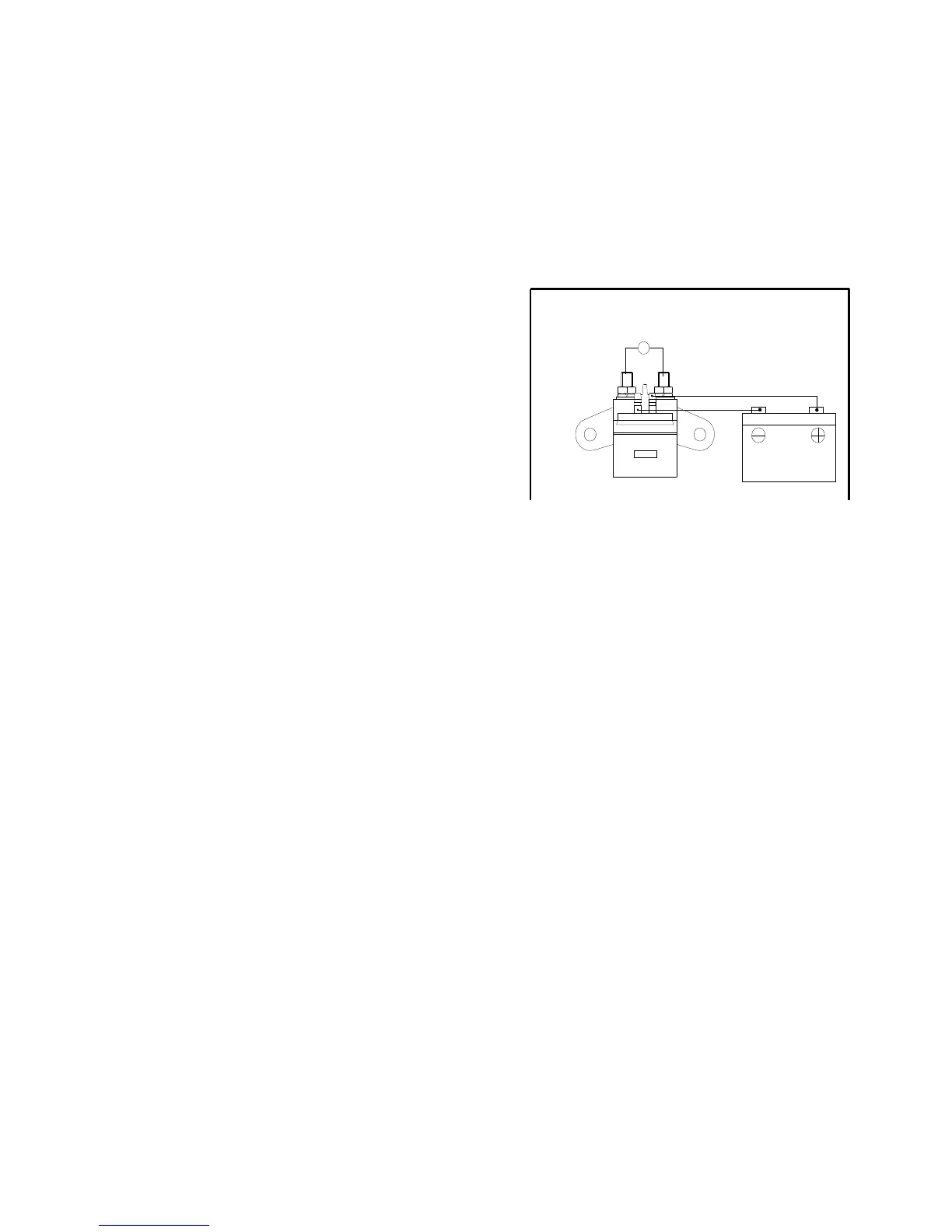

Connect the starter relay to the battery, and the
terminal of the starter motor to the multimeter.
Connect fully charged battery between the black
wire and the green/yellow wire of the relay. The
relay shall sound “click” and the multimeter shall
indicate resistance of “zero”.
