Benelli ZAFFERAN 250 - Handlebars

72
Handlebars
A
Installation torque of nut
13：55-62N·m
B
Free stroke of front
brake handle:10-20mm
C
Free stroke of rear brake
handle:
10-20mm
D
Free stroke of
throttle
controlling handle:
5-10mm
E
Installation torque of nut
16: 5-9N·m

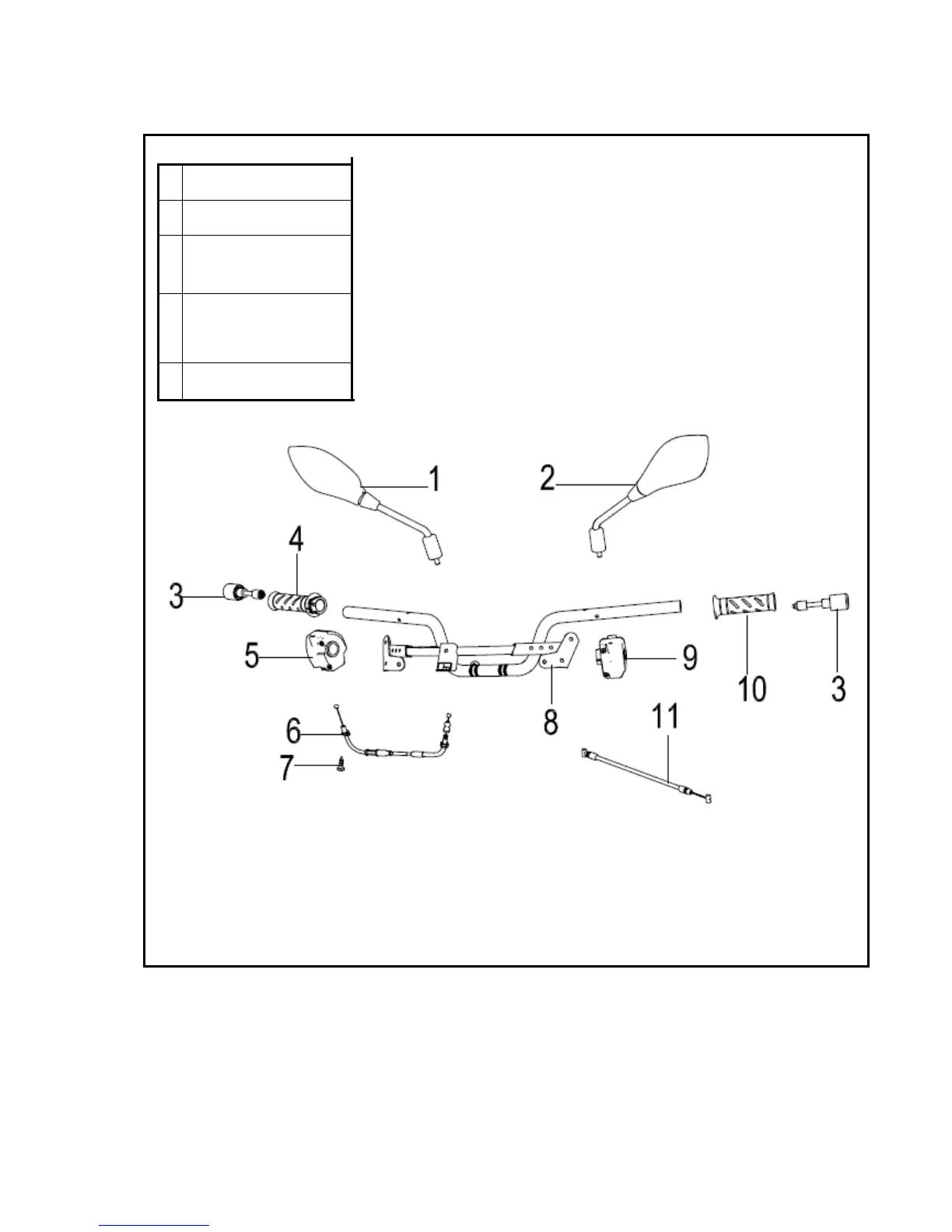

1.) Right rearview mirror assembly 2.) Left rearview mirror assembly 3.) Handlebar weight assembly
4.) Right handlebar grip w/ tube 5.) Right combination switch 6.) Throttle cable 7.) Bolt M5×10 8.)
Handlebar assembly 9.) Left combination switch 10.) Left handlebar grip 11.) Seat latch cable
