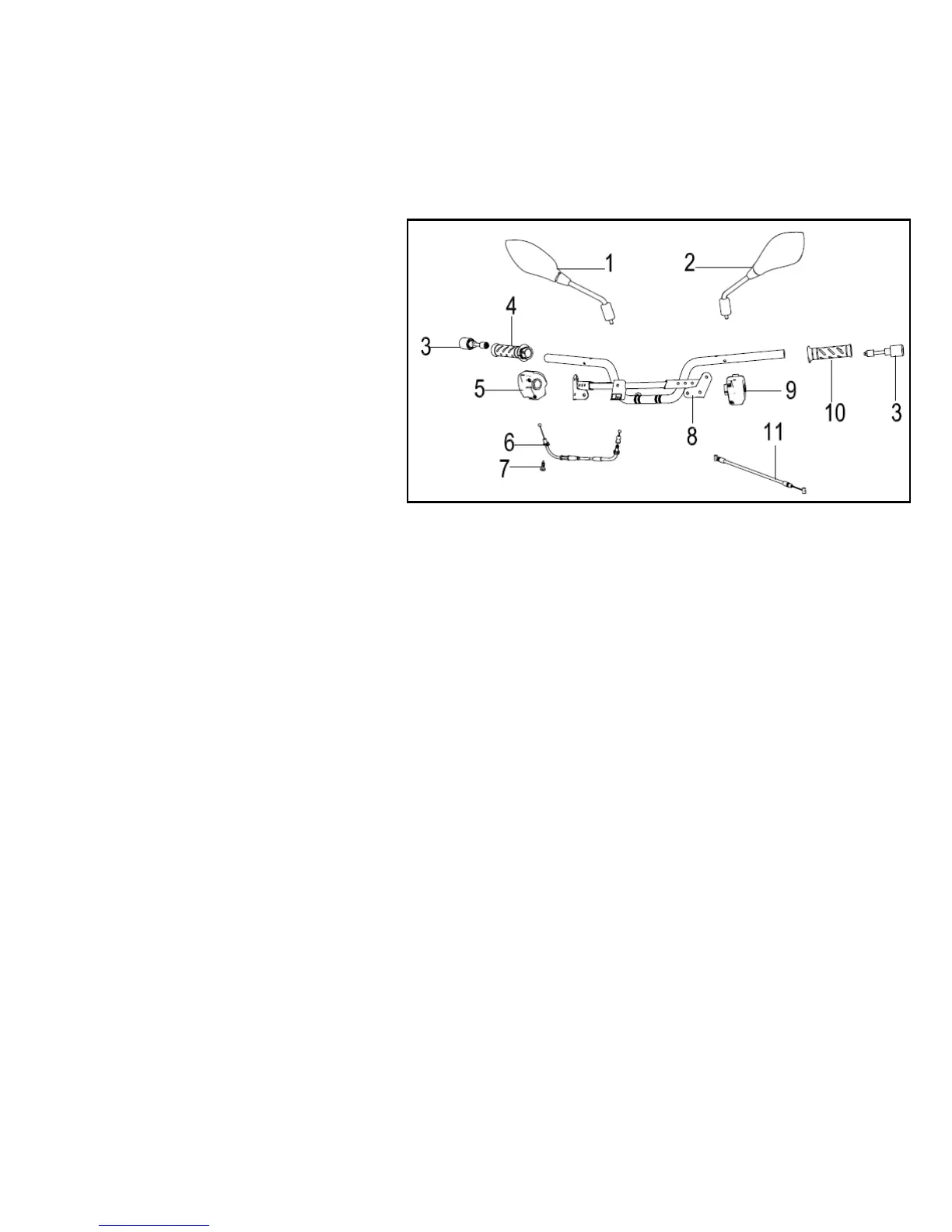

7.4 Handlebars
7.4.1 Disassembly
Remove the front and rear shield
and the rearview mirror assembly.
Remove the front brake handle and
the rear brake handle.
Remove the decorating cover of
the grip, the throttle cable
assembly and the right grip
assembly.
Remove the left
handlebar sleeve.
Remove fixing bolts for the
handlebars.
Remove the handlebars.
7.4.2 Installation
Install it in reverse order.
Fixing bolts
Torque force: 40-60 N·m
