Base-2 Security Panel
ENGLISH
PARTS IDENTIFICATION
The Parts of the Base-2 Security Panel
The numbers in boldface in square brackets refer to the parts described in this
section.
1
Alarm Line status LEDs (Red):
Blinking ± Line Open; On ± Alarm logged
2
Bypas s e d Zone
LEDs (Amber):
On
± Line Bypassed;
Off
± Line UnBypassed
3 Bypass zone buttons
4
Panel Status LED (Red):
On ± Panel Armed; Off ± Panel Disarmed
Blinking ± Line 1 Exit time running
5
Alarm LED (Red):
On ± At least one of the zones has generated an Alarm event
Blinking ± Alarm cycle running
6
Tampe r LED (Red):
aa Blinking ± AS Line Open: Open panel tamper or tamper on Proximity Readers
aaaOn ± Tamper alarm logged
7
Tro uble
LED (Yellow):
On ± Trouble present (refer to "The Terminals" section),
Blinking ± P a nel in Test sta tus (S to p Alarms

Jumper [20] connected)
8
Mains 220 V~ LED (Green):
On ± Mains OK; Off ± M a ins failure
9 Keyswitch Key
4
5
6
7
8
1
2
9
3

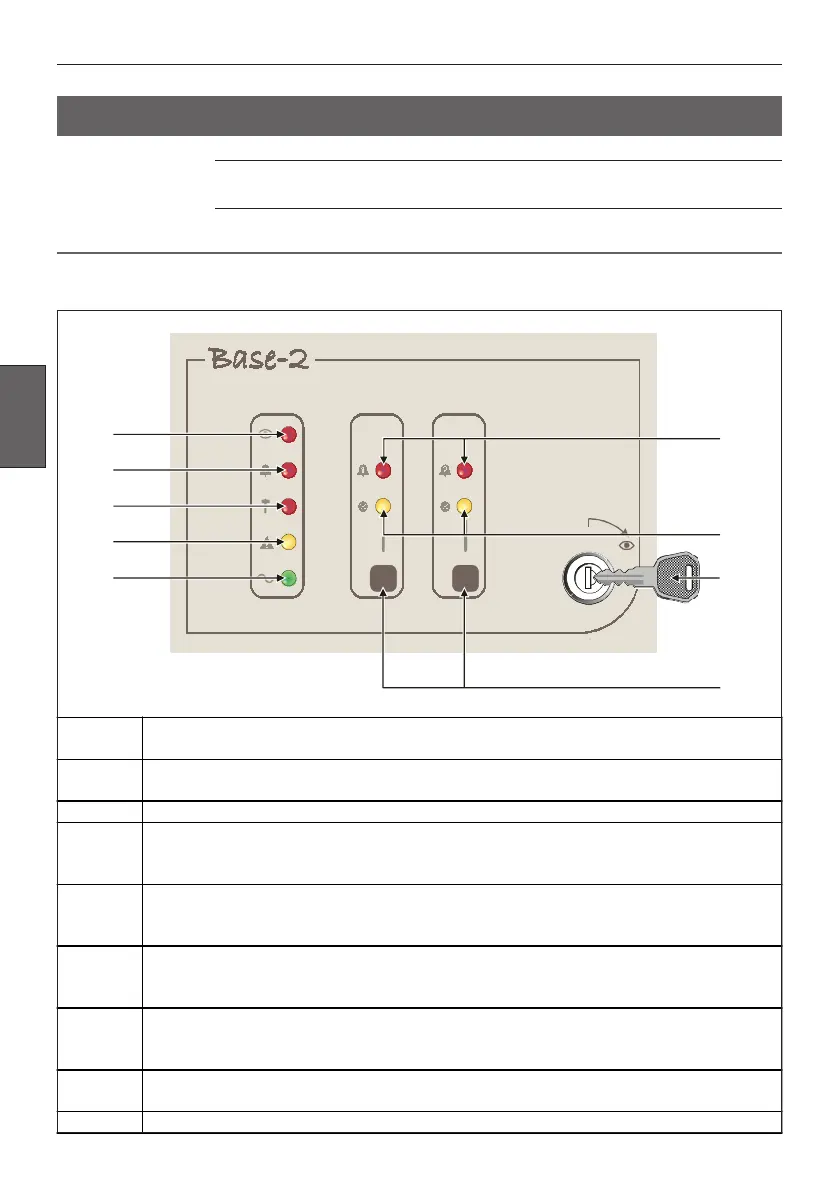

The Panel Frontplate
