Bentel Security Base-2 - The Parts of Key and Proximity Readers

29
Base-2 Security Panel
ENGLISH
31
Reader (5 DIP switch strip)
32 Address DIP switch strip
33 Jumper J1
34 Terminal board for Panel connections
35 Jumper J2
36 Green LED (refer to pages 20-22)
37
Amber LED (refer to pages 20-22)
38 Red LED (refer to pages 20-22)
39 Reader control switch
40 Key slot
41
Digital key
42 Backplate anchor screw holes
43 Buzzer
44 Snatch switch
45
Cable to be connected to the Panel:
Red 
to Terminal "
+
" (P o sitive)
White 
to Terminal "
C
" (C all)
Blue  to Terminal "R " (Answer)
Black  to Terminal "–" (Negative)
46 Snatch bracket (Accessory Item)
47
Snatch bracket anchor hole
48 Frontplate screws
49 Clasp
50 P ro ximity C ard

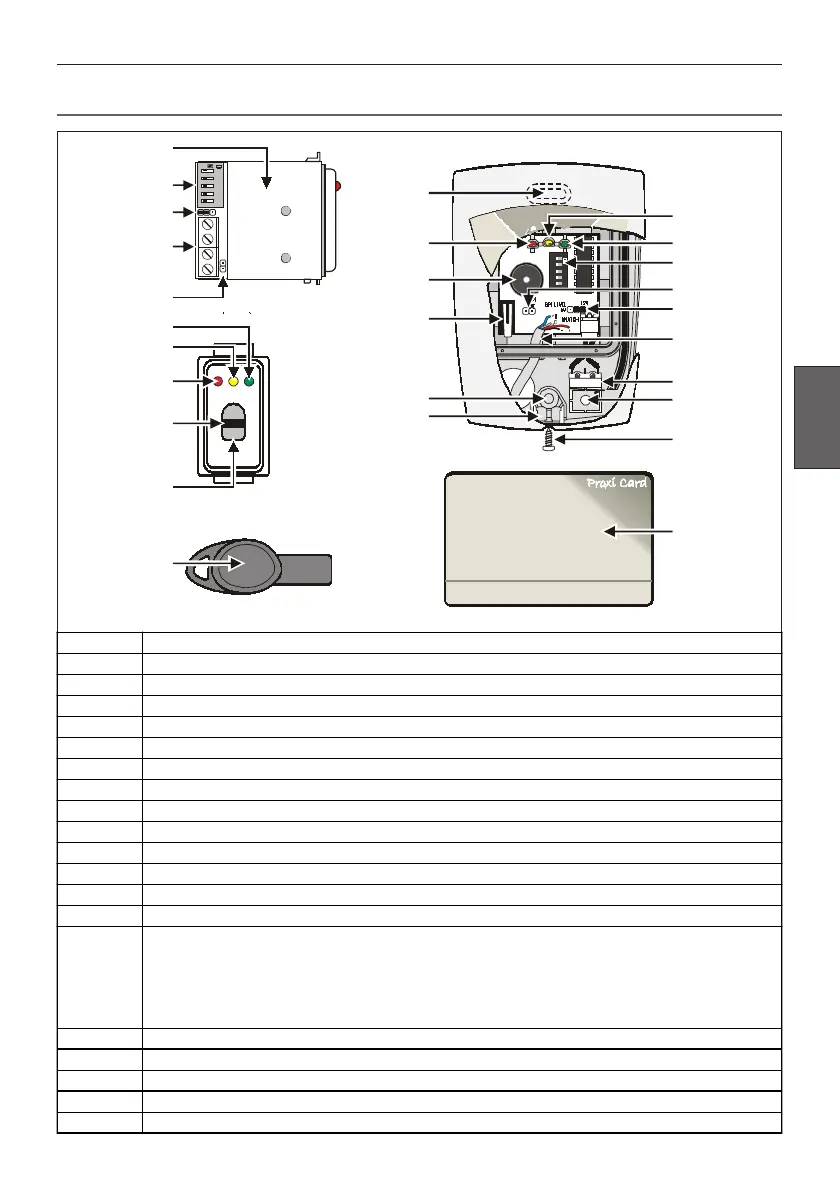

The Parts of Key and Proximity Readers
12345
12345
32
35
36
37
38
40
31
33
39
32
35
44
45
46
33
34
37
36
42
47
48
49
42
38
43
41
50
