27
Base-2 Security Panel
ENGLISH
Campione Freccia
10
11
12
13
18
19
20
17
21
17
14 15 16
10 PROG button: Enrols BPI Bus devices; Enrols/Deletes Keys/Cards
11
Snatch switch
12
DIP switch strip
13 2 position spring-return keyswitch: Arms/Disarms Panel; Deletes Alarm Memory
14
Fine Trimmer (set at factory)
DO NOT ADJUST!
15 Microprocessor
16
Buzzer—signals the following operations:
a) Button [3] or [10] has been pressed
b
) Entry and Exit times on the Delayed zone (fast beeps)
c) Enrolling Done (refer to "PROGRAMMING")
d) Memory Reset
17
Te r minal b oa r d
18 Fuse—protects the power supply to peripheral devices (3.15 A)
19 Fuse—protects against polarity inversion on internal battery (8 A)
20
TEST Jumper: to be connected during Panel Tests and Service, in order to block the 2
Alarm relays (Alarm Output and Alarm Output for the Internal Siren)
21 Battery wires

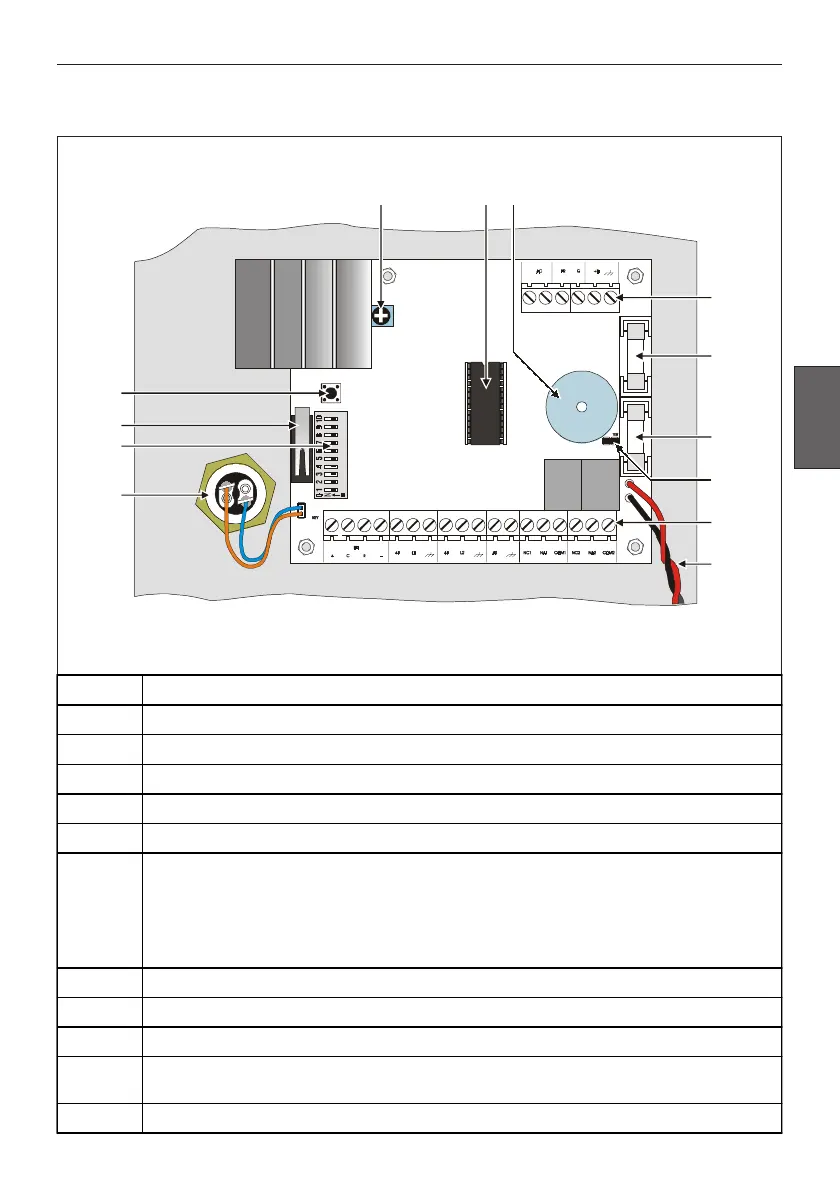

The Electronic Components
