Bentel Security Base-2 - Internal View

28
Base-2 Security Panel
ENGLISH
N
L
L
N
Campione Freccia
25
26
27
28
25 25
29
30
25

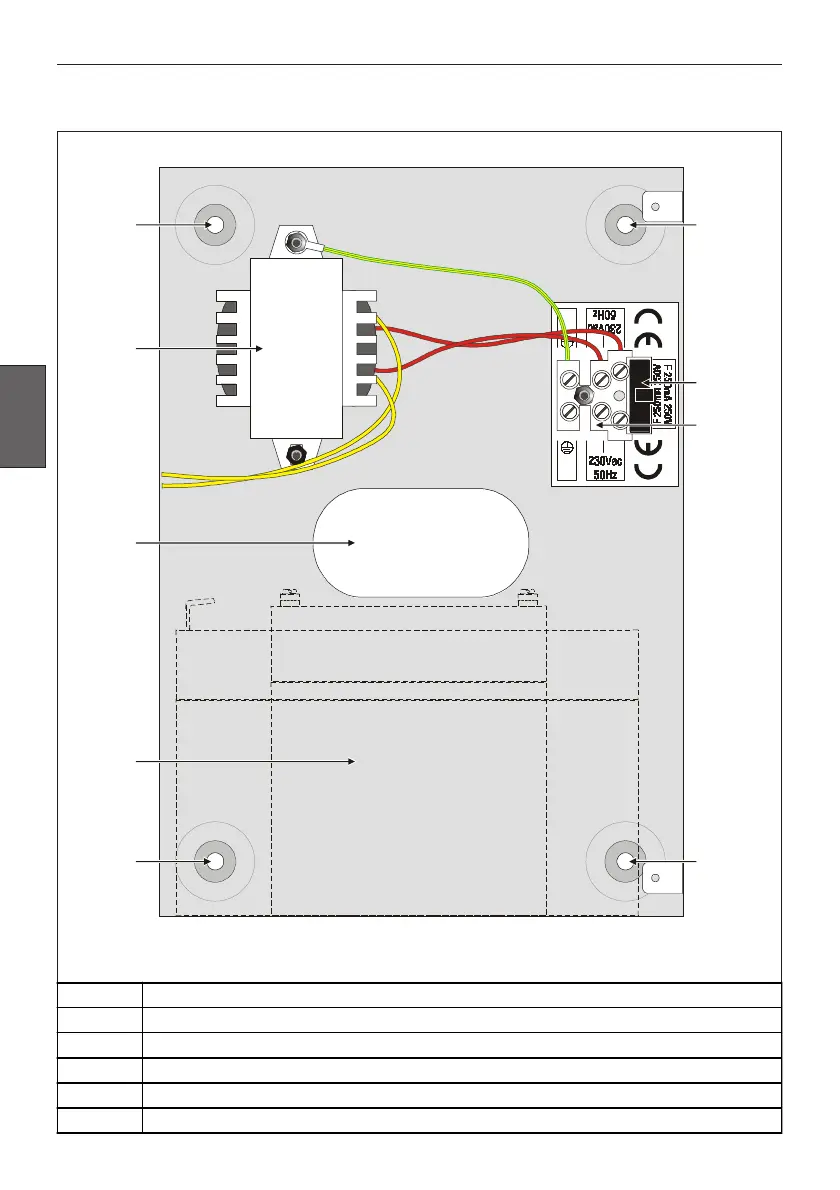

Internal View
25 Backplate anchor screw holes (4 x Ø 5 mm)
26
Power Transformer
27 Cable entry
28 Battery housing (12 V-7Ah max.)
29 Mains protection fuse 220

V

(250mA)
30 Mains connection terminals (220 V
~
)
