Bentone B40 - Component Identification

14
Bentone B 30/B 40 J/K
1.8 Description

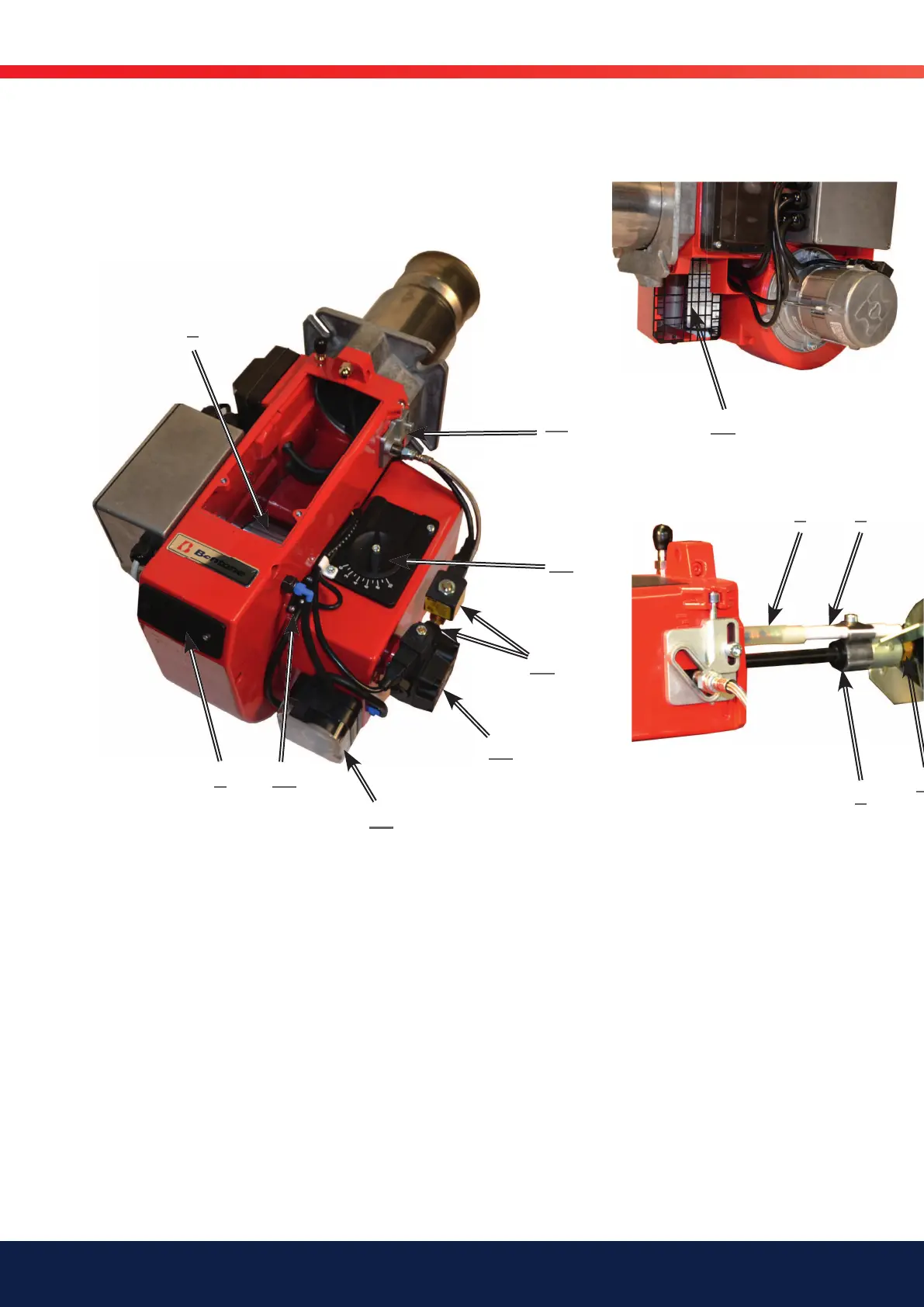

1.8.1 Components
1. Brake plate
2. Nozzle
3. Ignition electrodes
4. Nozzle assembly
5. Ignition Cable
6. Ignition transformer
7. Inspection glass
8. Fan wheel
9. Motor
10. Photocell
11. Nozzle assembly adjustment
12. Burner tube
13. Air setting
14. Solenoid valve
15. Air intake
16. Pump
17. Electric box
18. Air pressure switch
19. Capacitor
20. Disconnector
21. Switch 0-1
