Bentone B 30/B 40 J/K
4. Burner servicing
4.1 Servicing the combustion
assembly
Removal and installation
1. Switch off the main power.

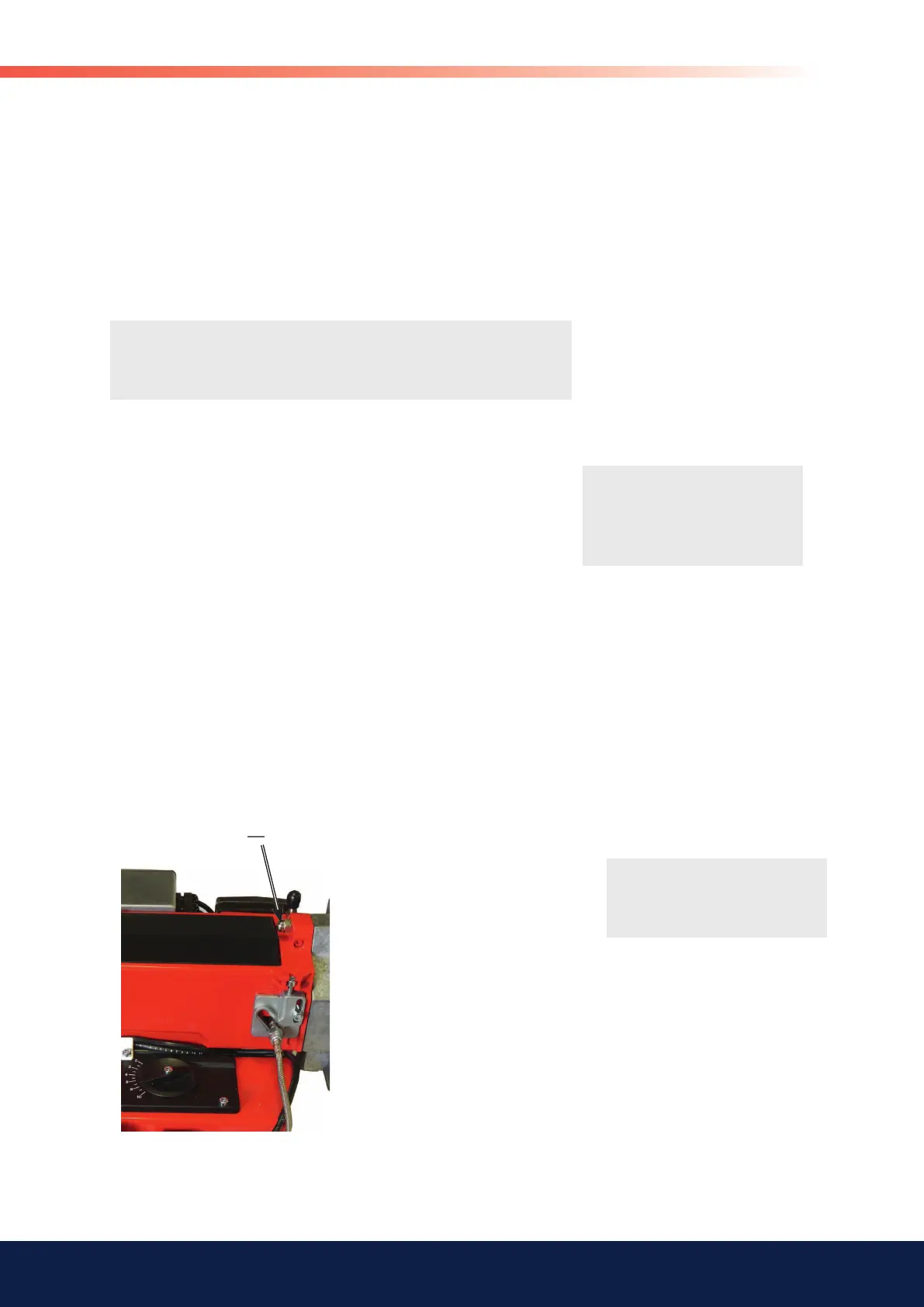

2. Loosen the nut (G) and remove the burner body from the burner fl ange.
3. Remove the brake plate from the oil pipe and clean the brake plate.
4. Unscrew the nozzle/nozzles.
5. Install new nozzle/nozzles.
6. Install the brake plate. (see technical data)
7. Check the ignition electrodes. (see technical data)
8. If necessary, replace the ignition electrodes.
9. Fit the burner body and the burner fl ange together and secure with the
nut (G).
10. Open the boiler/spectacle fl ange to access the burner pipe.
11. Remove and clean the burner pipe.
12. Install the burner pipe, make sure you install the drainage hole (not on
all burner pipes) facing downwards so that any spilled oil can drain out.
13. Close the boiler / spectacle fl ange.
14. Turn on the main power.
15. Check combustion*.
!
If the burner is directly connected, ensure that all components on
the burner are without power.
G
!
Use caution when
operating the burner,
surfaces may be hot.
!
NB: When soiled, always
replace nozzles with new
nozzles. Do not clean.
Note:
* When servicing/replacing components that affect combustion, an
analysis and soot test shall be carried out on the installation.
