Bentone B 30/B 40 J/K
2.5 Electrical connection
• Before work on the electrical connection, the current should be disconnected so that the installation
is isolated.
• Electrical connection must be done in accordance with the applicable regulations.
• Burners should be connected to an isolator switch.
• The connection should be made in accordance with the wiring diagram.
• Fuse rating is as required
1. Transport oil pump
2. Heavy oil fi lter
3. Overfl ow valve 0.5 – 2.0 bar
4. Fine fi lter
5. Pressure gauge 1
6. Pressure gauge 2

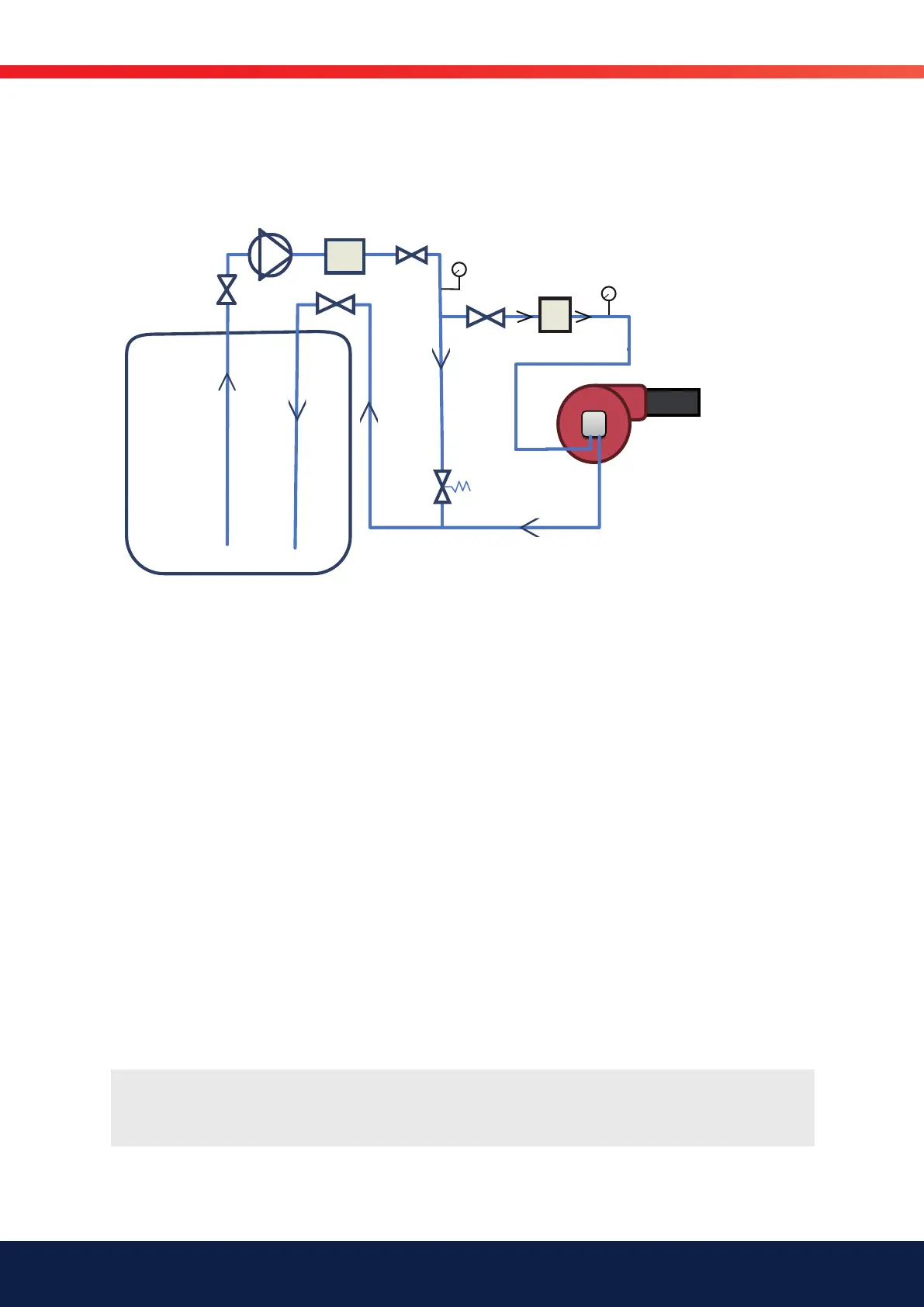

2.5.1 Proposed pipe routing for oil distribution systems with
transport pump
3
2
4
5
6
1
!
If any electrical connection is used other than that recommended by Bentone, there may be a danger of
damage to property and personal injury.
