Bernard Controls AQ Logic Series User Manual

English
12

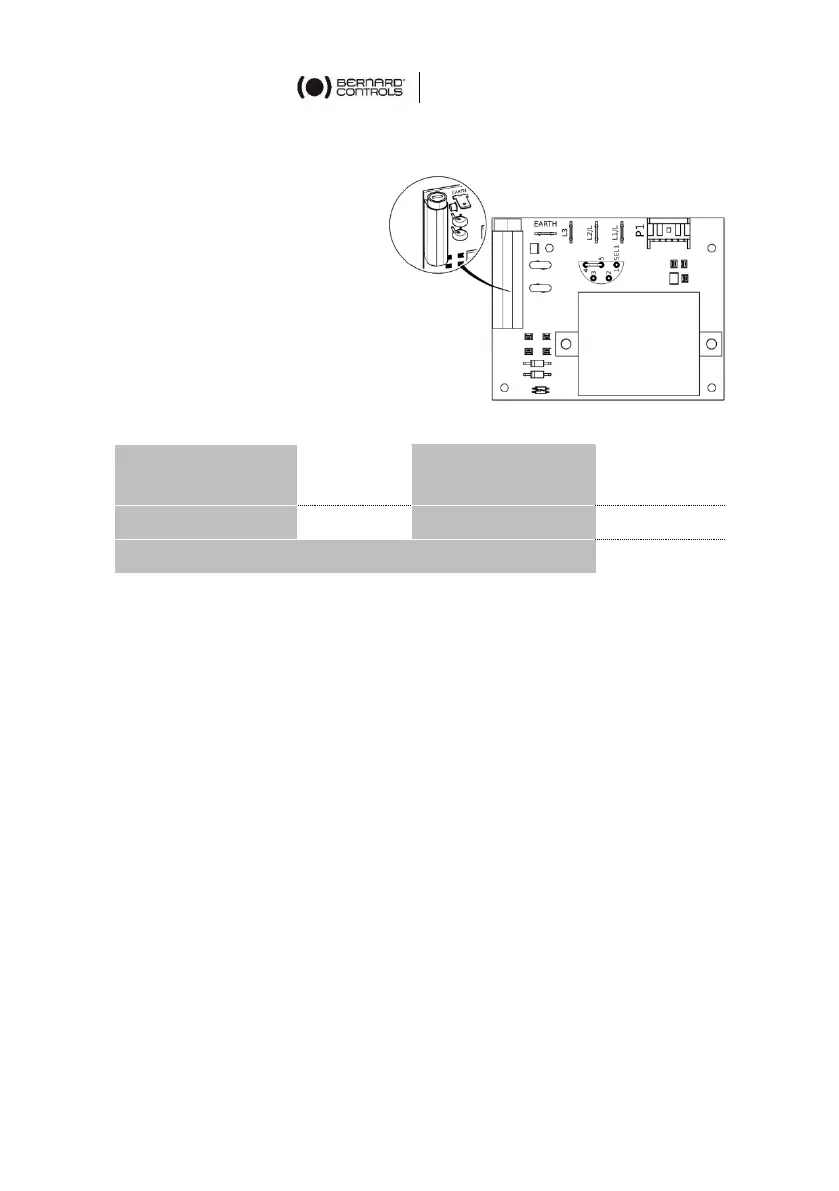

3.3.3 Power supply board
Power supply board supplies
actuator with electrical
power.
Power characteristics are
factory set according to your
order.
Fuse
The fuse is located at the
upper left angle of the board
(see picture).
Its characteristics are the following:
Fuse current
500 mA
Fuse size (mm)
(inches)
6.3×32
¼’’×1-¼’’
Voltage rating VAC
500 V
Blow characteristic
Fast acting
Breaking current capacity current AC
1 kA
3.3.4 Relays
AQ Logic is equipped with a Default relay and customizable relays
Fault relay
AQ Logic is equipped with a Fault relay which triggers system alarms.
This list of alarms cannot be modified.
 See list of Fault relay Alarms in Appendix III.
Customizable relays
AQ Logic actuator is equipped with 3 customizable relays, to which
you can add a 4-Relays board as an option.
Function of each relay can be set.
 To see possible settings and set relays, see §5.8.
