6. Select an option in the list

For standard relays, options available are:

7. You can select several option by navigating to the option

then ticking it with OK.

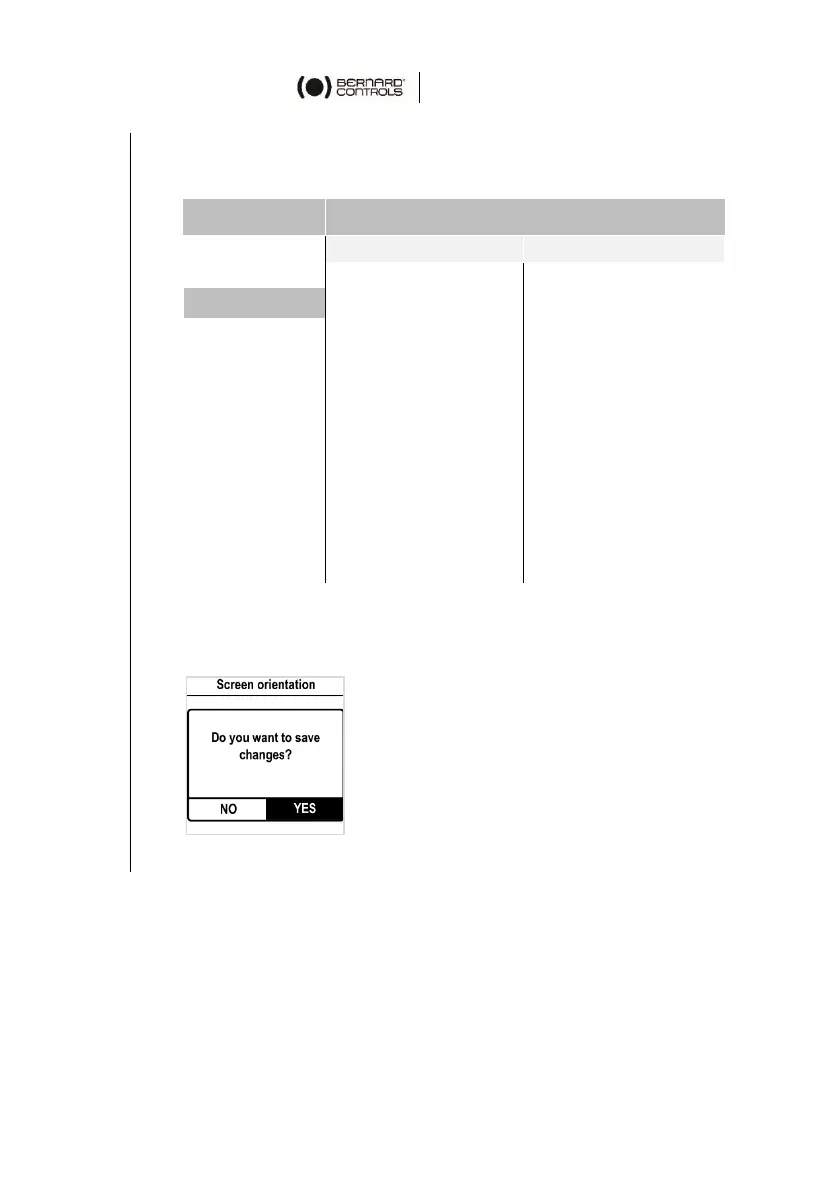

8. Go to Save and validate it. The confirmation screen appears.

9. Select YES and validate.

Relay 1

Relay 3

 Valve open

Information

Faults

 Valve open

 Valve closed

 Torque limiter

opening direction

 Torque limiter closing

direction

 Actuator is opening

 Actuator is closing

 Actuator is running

 Intermediate position

indication

 OFF mode

 Local mode

 Remote mode

 Stopped in

intermediate position

 Motor thermal

overload

 Jammed valve

 Phase loss

 Power on

 Handwheel action

 Relay operated by

Fieldbus

Relay 2

 Valve closed
