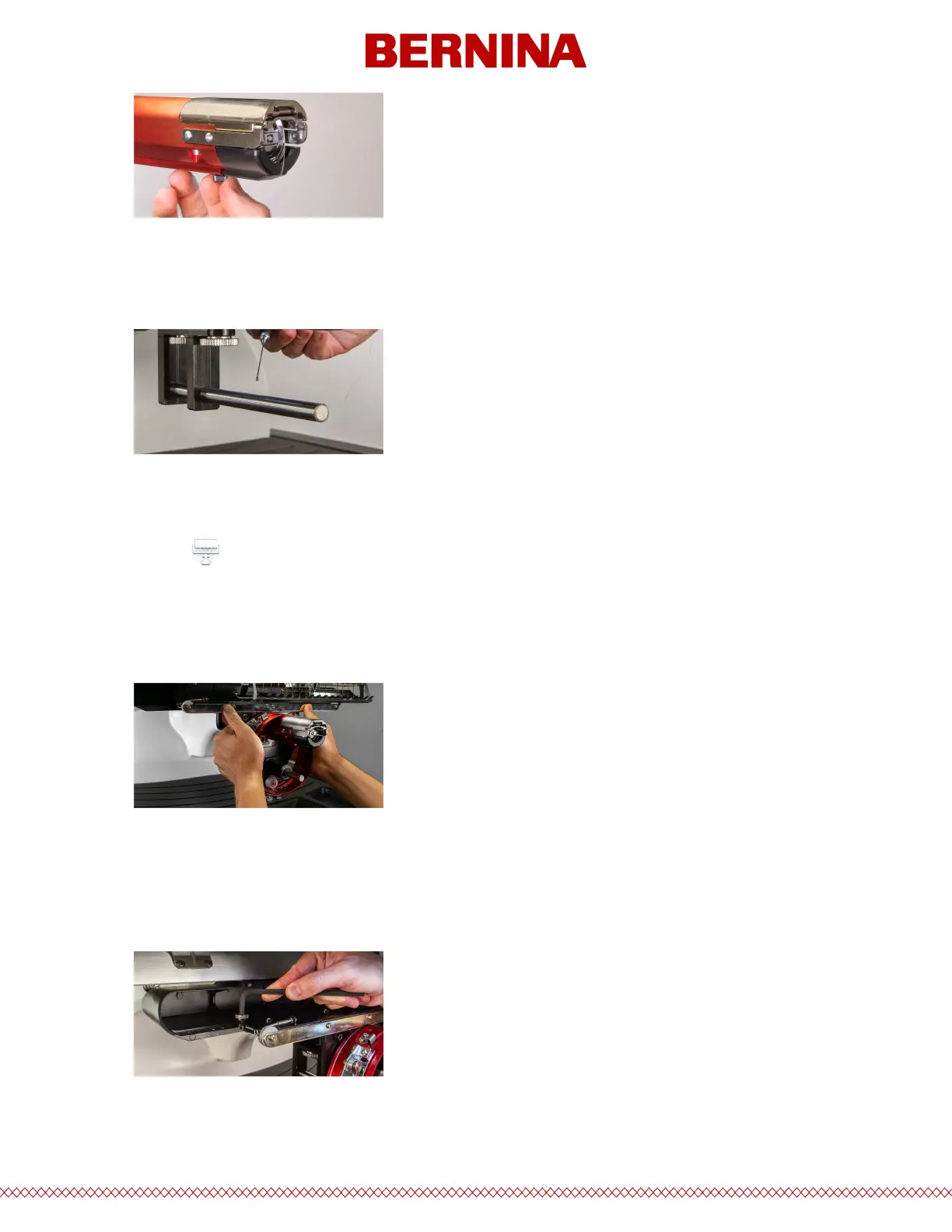

10. A few drops of sewing machine oil should be applied to the lower support shaft prior to the initial
installation of the driver ring assembly. This oil should be applied every three months on later
installations.
11. Slide the red driver assembly onto the lower arm and support shaft. This may be easier if the grabber
bar of the machine is closed.
o Tap to close the grabber.
Then, slide the red driver assembly onto the lower arm and support shaft. Notice the orientation of
the ring in the picture.
12. Using two of the thumb screws from the hoop arms, attach the red driver to the x-carriage of the
machine. The driver will attach to the two innermost holes. Tighten them to nger-tight, and then use
a 6mm Allen wrench to tighten an eighth to quarter turn more. Do not over-tighten the screws as they
are designed to break before damage to the machine can occur.
