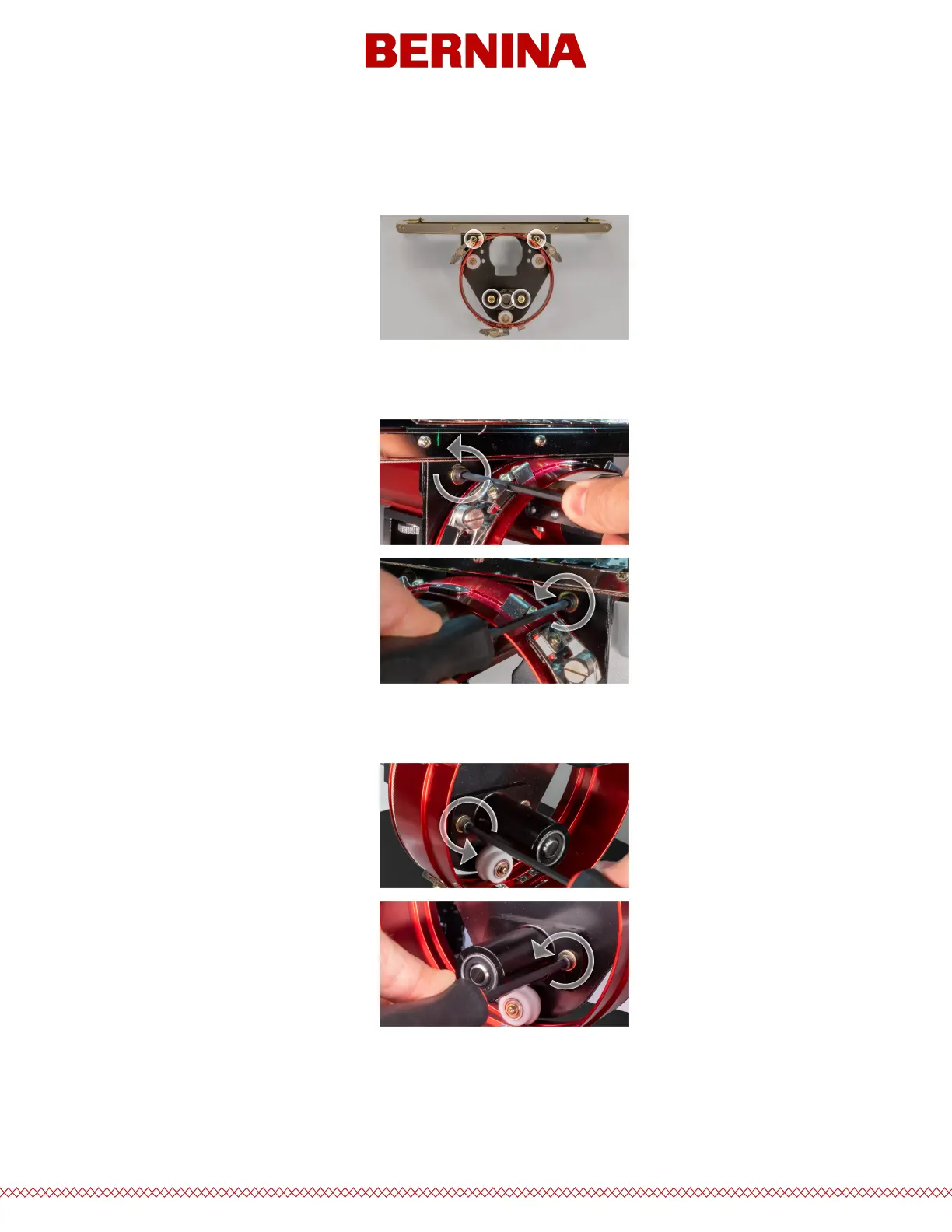

Adjustment Procedure
1. Begin by loosening the two bearing block hex screws and the two interface bracket screws using the
4mm hex screwdriver.
2. Install the Wide-Angle Driver on your machine.
3. Position the driver so that the bearing block is aligned to the front of the support shaft and the driver
ring is centered with the hole in the needle plate. Reference the ring’s frame location tab.
