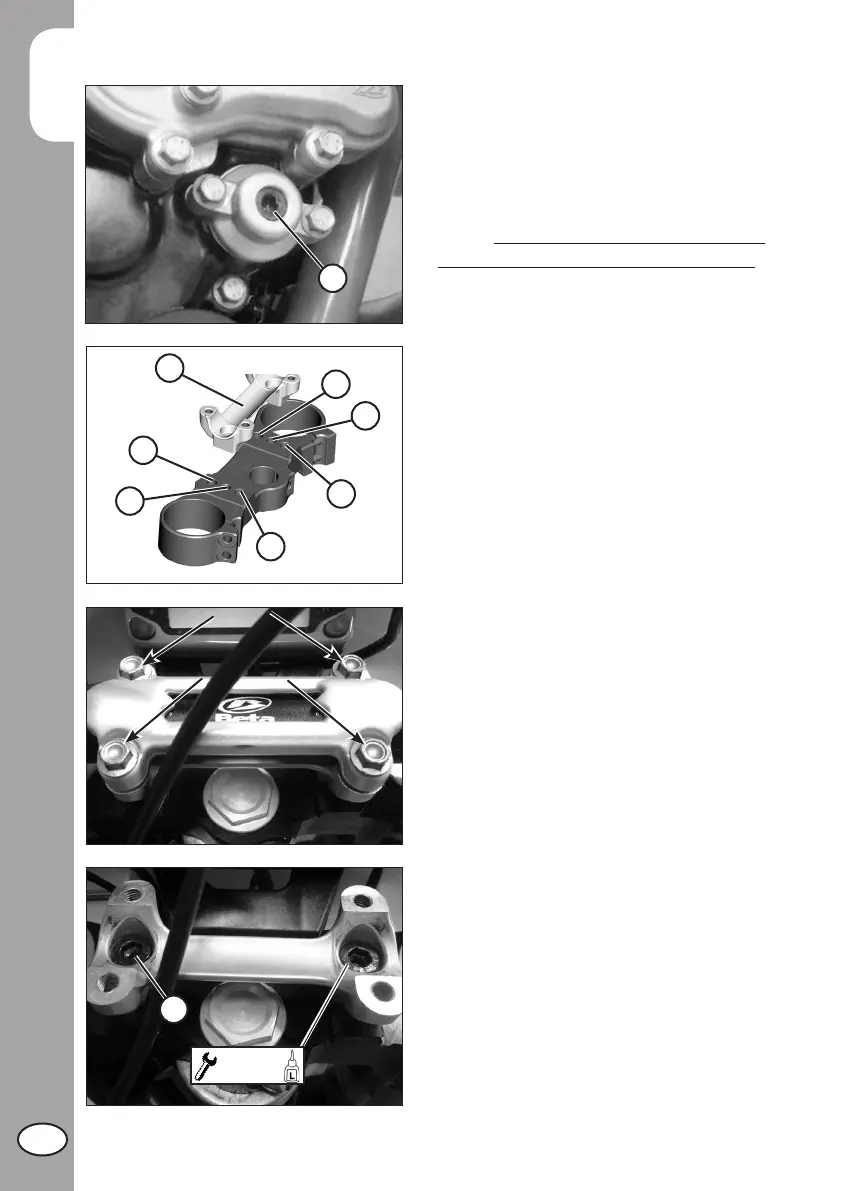

HANDLEBAR ADJUSTMENT
U-BOLT POSITION ADJUSTMENT
The lower bracket 1 can be mounted in
correspondence of the holes nr. 2, 3 or
4 respectively.
To adjust the position of the u-bolt remove
the screws shown in the figure.
Remove the handlebar.
Remove the screws 5.
Position the U-bolt according to require-
ments.
At the end refit the screws 5 after the ap-
plication of thread lock fluid and tighten
to the torque indicated.
1
2
2
3
4
3
4
40Nm
5
1
EXHAUST VALVE CONTROL
ADJUSTMENT
ATTENTION! The vehicle is provided
with an exhaust valve whose fine tuning
is performed during the final try-out of the
engine. The position of adjustment valve
1 must not be modified for any reason.
For any adjusting, please contact Betamo-
tor’s Authorized Service Network.
