1
GENERAL INFORMATION
14
GB
ELECTRICAL SYSTEM

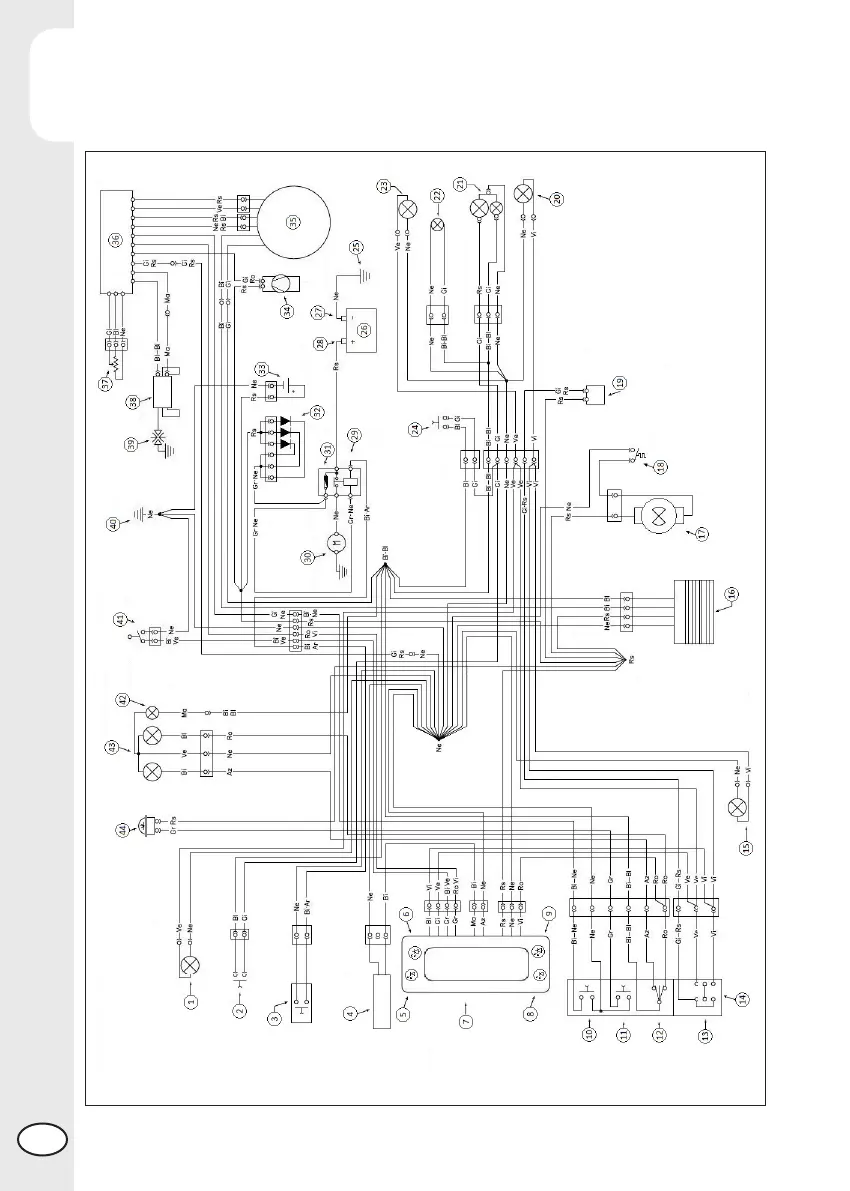

ELECTRICAL DIAGRAM
Key to colours
Bi = White
Ve = Green
Ma = Brown
Vi = Purple
Bl = Blue
Ne = Black
Gi = Yellow
Rs = Red
Ar = Orange
Az = Sky-blue
Ro = Pink
Gr = Grey
